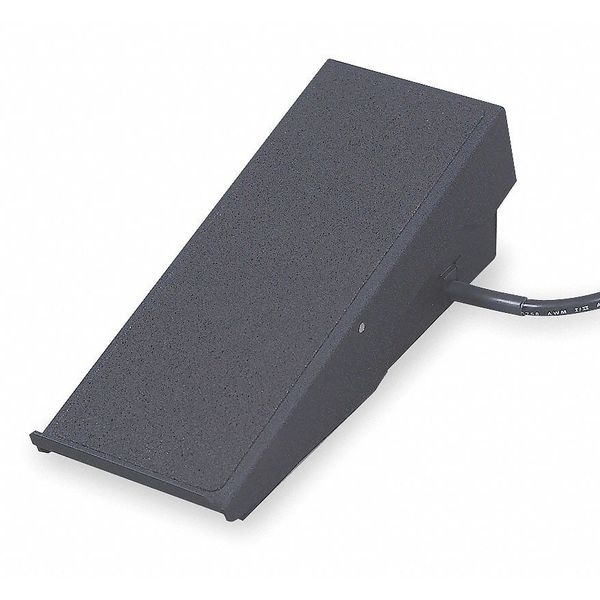

Linemaster Medium Duty Foot Switch, Momentary Action OHASAA-1K - main

Medium Duty Foot Switch, Momentary Action

  • Mfr # OHASAA-1K

  • Zoro # G0444141

product price: $400.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPDT
NEMA Rating
1
Voltage Rating
125 to 250V AC
Color
Black
Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OHASAA-1K
Zoro #
G0444141
UPC #
-
Country of Origin
United States

Dimensions

Width
4 1/2 in
Depth
4 in
Length
12 3/4 in
Cord Length
25 ft
Length (Straight Wireway)
12 3/4 in
Overall Width
4.25 in
Overall Depth
12.78 in
Overall Height
4 in

Details

Item
Foot Switch
Contact Form
SPDT
NEMA Rating
1
Voltage Rating
125 to 250V AC
Color
Black
Material
Steel
Features
(2) Mounting Holes
Current Rating
15
Cord Type
18/6
Action
Momentary
IP Rating
IP20
Standards
cULus, RoHS
Product Type
Foot Switch
Housing Materials
Formed Steel
Switch Connections
Pre-wired
PURPOSE
Long Treadle Throw Large Footprint Design
ENCLOSURE
NEMA Type 1 • UL ENCLOSURE Type 1 • EN 60529 Degree Of Protection IP20
Circuitries
SPDT (Form "C")
Electrical Ratings
1/2 HP 125-250 VAC, 10A, 125-250 VAC
FEATURES & BENEFITS
Coiler Fan Potters Wheels Tables Vehicle Welders
Actions
Variable Control
Housing Colors
Black
Switch Type
Linear, 2 Watt 1K ohm
Cordsets
25-ft cordset w/14 pin plug
MATERIALS
Retrofits most welding equipment with a simple receptacle selection For environments where a non-watertight housing is suitable 2 holes provided for rigid mounting to floor or equipment Heel rest offered on "OH" models
AC Contact Rating
10 A @ 125 to 250 V
Termination Connection Type
Pre-Cabled
Power Source
Electrically Corded
NEMA Enclosure Rating
1
Includes Foot Guard
No Guard Included
Hazardous Location Specification
Not Rated
Includes Potentiometer
Potentiometer Included
Horsepower
0.5 HP @ 125 to 250V AC
Series
Varior OH
Number of Pedals
1

Description

Foot Switch, SPDT Contact Form, Voltage Rating 125 to 250V AC, NEMA Rating 1, Current Rating 15, Material Steel, Color Black, Momentary Action, Cord Type 18/6, Length 12 3/4 in, Width 4 1/2 in, Depth 4 in, Cord Length 25 ft, IP Rating IP20, Features (2) Mounting Holes, Standards cULus, RoHS
