, Galvannealed Steel, 12 in Curb, Insulated Lid, Flush Mount, Interior Lock, Gray

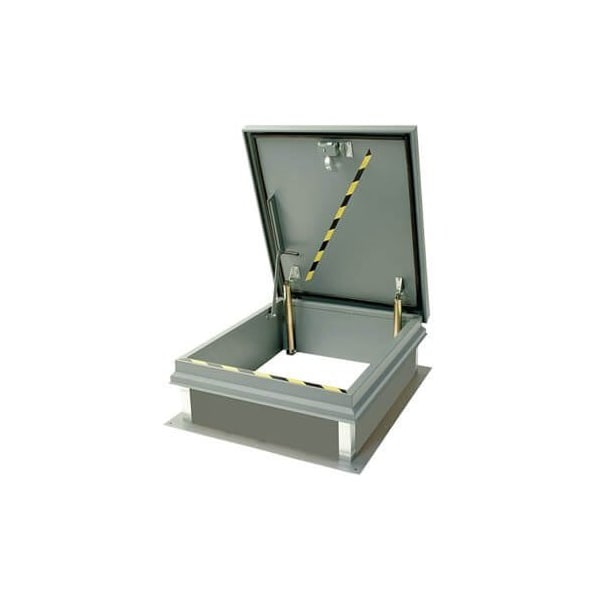

The Linhdor Roof Hatch is a rugged, commercial-grade roof access solution designed for strength, weather resistance, and jobsite reliability. Built from 14-gauge galvannealed steel, this unit is factory-primed in a durable gray re-coatable finish and engineered for flat or low-slope roof applications in commercial, industrial, and institutional buildings.The hatch features a 12-inch high curb with fully welded corners and an integral cap flashing to ensure a watertight seal. The cover is constructed from 14-gauge steel with radius safety corners and is insulated with 1 in rigid insulation, providing an R-value of 5.9. A continuous extruded Santoprene gasket is mechanically fastened to the lid interior to prevent air and water infiltration in all weather conditions.Safety and visibility are enhanced with high-visibility yellow and black caution striping on both the interior lid and the curb top. Inside, the door includes a positive one-point interior locking mechanism and a padlockable exterior handle, allowing secure access from either side. A standard automatic hold-open arm with vinyl grip ensures safe operation during maintenance and rooftop access.The hatch lid opens smoothly and safely with pre-lubricated compression springs encased in zinc-plated telescoping tubes, supported by fully welded brackets. Hinge hardware is concealed on the interior, protecting it from rust and external tampering.Standard units include a galvannealed steel liner and an optional wood or FESCO-insulated actuator housing. Multiple standard sizes are available, with custom sizes available upon request. Models are also available in aluminum construction for lighter-weight or highly corrosive environments.Key Features: 14-gauge galvannealed steel lid and curb with gray primer finish 1 in rigid insulation R-5.9 in cover; 4 in fiberboard curb insulation 12 in curb height with fully welded corners and integral cap flashing Interior and exterior handles with padlock provisions Pre-lubricated compression springs in zinc-plated telescoping tubes Automatic hold-open arm with vinyl grip Continuous extruded Santoprene weather gasket Concealed hinge hardware minimizes corrosion and tampering High-visibility caution striping for safety compliance Available in custom sizes and optional aluminum construction

• 14-Gauge Galvannealed Steel Construction: Durable and corrosion-resistant with a factory gray primer finish that's re-coatable on-site.
• 12" Fully Welded Curb with Integral Cap Flashing: Seamless, leak-resistant curb design ensures watertight protection and structural strength.
• Insulated Lid and Curb: 1" rigid lid insulation (R-5.9) and 4" curb insulation provide superior thermal protection and energy efficiency.
• Santoprene Extruded Gasket Seal: Mechanically fastened to the lid interior to prevent air, dust, and water infiltration.
• Heavy-Duty Concealed Hinges and Pivot Pins: Rust-resistant and tamper-protected hardware delivers smooth, reliable lid operation.
• Automatic Hold-Open Arm with Vinyl Grip: Safely secures lid in the open position during roof access or maintenance tasks.
• Dual Locking System with Padlock Provisions: Interior and exterior handles include one-point positive lock and padlock compatibility for added
• Pre-Lubricated Compression Springs in Telescoping Tubes: Smooth, controlled lid opening and closing with reduced wear on hardware components.
• High-Visibility Safety Striping: Yellow/black caution markings on the curb and interior lid enhance visibility and jobsite safety compliance.
• Custom Sizes and Aluminum Options Available: Wide range of standard sizes plus custom fabrication and aluminum models to suit unique site requirements.
