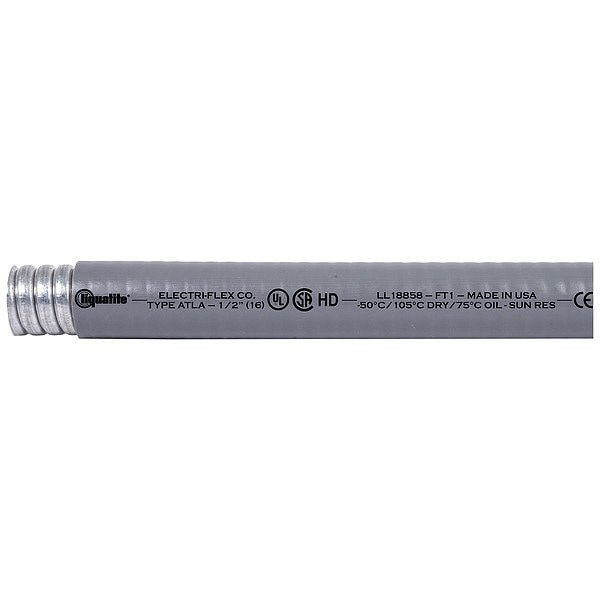

Liquid-Tight Flex Metal Conduit, 1 in Trade Size, 100 ft, 5-1/2 in Bend, Steel, Gray

  • Mfr # ATLA-13

  • Zoro # G205670098

product price:  $773.99
/ea
Free Shipping & Returns

Key Features

Nominal Length
100 ft
Bend Radius
5-1/2 in
Material
Steel
Jacket Material
PVC
Finish
Galvanized
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATLA-13
Zoro #
G205670098
UPC #
-
Country of Origin
United States

Dimensions

Trade Size
1 in
Nominal Length
100 ft
Bend Radius
5-1/2 in
Inside Diameter
1.04 in, 1.07 in
Outside Diameter
1.32 in

Details

Item
Liquid-Tight Flex Metal Conduit
Material
Steel
Jacket Material
PVC
Finish
Galvanized
Jacket Color
Gray
Min. Operating Temp.
-58 Degrees F
Max. Operating Temp.
221 Degrees F
Series
ATLA
Wet Location
Yes
Usable Temperature Range
-55 Degrees C to 105 Degrees C Air / 60 Degrees C Wet / 70 Degrees C Oil; -50 Degrees C to 105 Degrees C Dry / 75 Degrees C Oil
Jacketed
Yes
Weight
82 lb
Standards
ANSI/NFPA-79 Section 14.5.4, ANSI/UL-360, ARRA Certified, Article 350 of the NEC (ANSI/NFPA-70), Canadian Electrical Code (CEC CSA 22.1-18), CE Declaration: EN IEC 61386 Classification Code 445340650414 LVD 2006/G5/EC, CSA 22.1 18, CSA 22.1 J18, CSA 22.2 No.56-17, CSA Certified File No. LL18858, RoHS Compliant, UL Listed File No. E29278, WEEE Compliant
Flexible Conduit Usable Temp. Range
-50 to 105°C (Dry), -50 to 75°C (Oil)
Special Features
Direct Burial, Flame Retardant, Heavy-Duty
Resistance Properties
Mild Acid Resistant, Oil Resistant, UV Resistant
Voltage
1,000 V
Approval Rating
ANSI, ARRA, NEC, CEC, CE, CSA, NFPA-79 Section 14.5.4, RoHS, UL, UL-360, WEEE
Indoor/Outdoor Usage
Outdoor Only
Flexibility
Flexible
Color
Gray

Description

Liquid Tight Conduit, Trade Size 1 in, Bend Radius 5 1/2 in, Color Gray, Approval Rating ANSI, ARRA, NEC, CEC, CE, CSA, NFPA-79 Section 14.5.4, RoHS, UL, UL-360, WEEE, Steel, Jacket Material PVC, Max. Operating Temp. 221 Degrees F, Min. Operating Temp. -58 Degrees F, Nominal Length 100 ft, Finish Galvanized, Flexibility Flexible, Indoor/Outdoor Usage Outdoor Only, Inside Diameter 1.04 in, 1.07 in, Jacket Color Gray, Jacketed Yes, Outside Diameter 1.32 in
