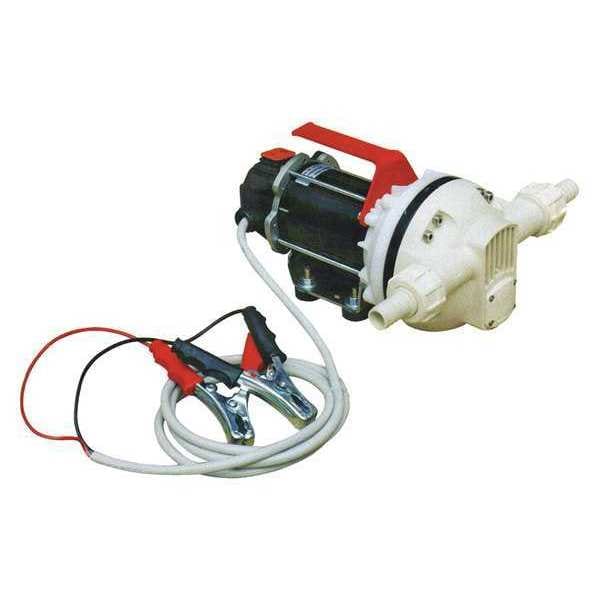

Item Electric Drum Pump
Inlet 3/4"
HP 1/10
Wetted Materials EPDM, Polypropylene, Stainless Steel
Voltage 12
Max. Head - Pumps 48 ft
Seal Material EPDM
Suction Lift 6 ft.
Motor RPM 2,600 RPM
Housing Material - Pumps Polypropylene
Amps 2.2
Phase Single
Motor Type 2 Pole
RPM 2600
Max. Specific Gravity 1.09
Duty Intermittent
Housing Material Polypropylene
Seal Type Mechanical
Shaft Material Stainless Steel
Motor Enclosure IP55
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Max. Head 50 ft.
Agency Compliance ISO
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Max. Pressure 28 psi
Bearing Type Ball
Max. Liquid Temp. 104 Degrees F
Self-Priming Yes
Motor HP 1/10 hp
Min. Fluid Temp. 17 Degrees F
Plug Type Spring Clamp
Includes Bung Adapter No
Discharge Tube Outlet ID 3/4 in
Runs Dry Yes
Max. Viscosity 10 cps
Food Grade No Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Full Load Amps 22.0 A
Power Source Corded Electric
Diesel Exhaust Fluid Compatible Yes
Variable Speed No
Includes Nozzle No
Noise Level 70 dB
Includes Discharge Hose No
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Duty Cycle Intermittent
Metered No
Max. Head Pressure 23 psi
Max. Flow Rate 8 gpm
Discharge Connection Type Hose Barb
Max. Oil Flow 8 gpm
Includes Suction Tube Yes
Max. Fluid Temp. 104 Degrees F
Discharge Tube Outlet OD 1 in
Number of Phases 1
For Container Type Drum, Tote Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Rated Voltage 12 V DC
Grease NT
Max. Outlet Pressure 23 psi
Gear Lube NT
Explosion Proof No
Pump Connection ID 3/4 in
Pump Technology Diaphragm
Hazardous Location Class Not Rated
Maximum Viscosity 10 cps
Maximum Fluid Temperature 104 Degrees F
Meter Type Included No Meter Included
Maximum Oil Flow 8 gpm
Motor Speed 2,600 RPM
Maximum Head Pressure 23 psi
Motor Enclosure Design Totally Enclosed Fan Cooled
Minimum Fluid Temperature 17 Degrees F
Maximum Head 48 ft
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Wetted Material EPDM/Polypropylene/Stainless Steel
Maximum Flow Rate 8 gpm
Maximum Outlet Pressure 23 psi
Housing Finish Powder Coated
Motor Horsepower 1/10 hp
Static Protection Not Groundable
Full Load Current 22 A
Standards ISO
Mount Type Foot
Power Source - TS Only Corded Electric
