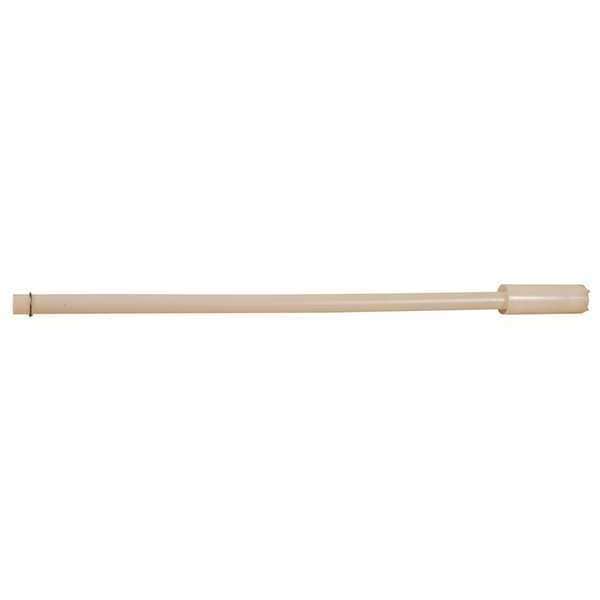

Suction Tube, 5/8 in. Dia., 32 in. L

Mfr # 195205-32
Zoro # G4022256

18.75

Key Features

Length

32"

For Use With

Mfr. No. 195205B

DEF Compatible

Yes

Height

32"

Manufacturers Warranty Length

30 days

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 195205-32
Zoro #: G4022256
UPC #: -
Country of Origin: United States

Dimensions

Length: 32"
Height: 32"
Manufacturers Warranty Length: 30 days
Diameter: 5/8"
Width: 1", 1-45/64"
Suction Tube Length: 32 in
For Container Size: 55 gal
Suction Tube Length - Maximum: 32 in
Suction Tube Length - Minimum: 32 in
Inlet Size: 1 in

Details

Item: Drum Pump Tube
For Use With: Mfr. No. 195205B
DEF Compatible: Yes
Max. Liquid Temp.: 86 Degrees F
Wetted Materials: Polypropylene
Adapter Material: Polypropylene
Agency Compliance: ISO 22241-3
Suction Tube Material: Polypropylene
Suction Tube ID: 1 in
Food Grade: No
Diesel Exhaust Fluid Compatible: Yes
For Container Type: Drum
Compatible Chemicals: Acetic Acid (Glacial),Acetic Acid 20%,Acetic Acid 80%,Ammonia (Liquids),Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze (Coolant),Automatic Transmission Fluid,Calcium Chloride,Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Glycerin,Hydrochloric/Muriatic Acid (100%),Hydrochloric/Muriatic Acid (20%),Hydrochloric/Muriatic Acid (37%),Hydrofluoric Acid (20%),Hydrofluoric Acid (75%),Hydrofluoric Acid 100%,Isopropyl (Isopropanol),Methyl (Methanol),Methyl Ethyl Ketone (MEK),Motor Oil,Nitric Acid (10% Solution),Nitric Acid (20% Solution),Nitric Acid (50% Solution),Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide/Caustic Soda (20%),Sodium Hydroxide/Caustic Soda (50%),Sodium Hydroxide/Caustic Soda (80%),Sodium Hypochlorite/Bleach (to 20%),Stoddard Solvent (Mineral Spirits),Sulfuric Acid (10% - 75%),Sulfuric Acid (75% - 100%),Sulfuric Acid (to 10%),Toluene,Xylene
Min. Fluid Temp.: 0 Degrees F
Not Recommended Chemicals: Acetone,Biodiesel,Brake Fluid,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Fertilizers,Fungicides,Gasoline,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Kerosene,Lacquer Thinners,Lithium Grease,Methyl Chloride,Naphtha,Paint,Paint Thinner,Pesticides,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid
Suction Tube OD: 1 1/16 in
For Media Type: Acetic Acid,Ammonia,Ammonium Hydroxide,Antifreeze,Automatic Transmission Fluid,Bleach,Calcium Chloride,Citric Acid,DEF,Ethanol,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formic Acid,Glycerin,Hydrochloric Acid,Hydrofluoric Acid,Isopropanol,Ketones,Methanol,Motor Oil,Nitric Acid,Phosphoric Acid (40% Solution),Potassium Hydroxide (50%),Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide,Stoddard Solvent,Sulfuric Acid,Toluene,Water,Xylene
Max. Fluid Temp.: 150 Degrees F
Gear Lube: NT
Grease: NT
Suction Tube Type: Fixed
Discharge Tube Outlet OD: 1 1/16 in
Runs Dry: Yes
Wetted Material: Polyethylene
Minimum Fluid Temperature: 0 Degrees F
Maximum Fluid Temperature: 150 Degrees F
Compatible Manufacturer Part Number: 195205B
Includes: Includes Snap-Ring
Compatible Series: 195205B, 195205N
Discharge Tube Outlet ID: 1 in
Standards: ISO 22241-3
Chemical Compatibility: Acetic Acid 20%,Acetic Acid 80%,Ammonia Liquid,Ammonium Hydroxide,Anhydrous Ammonia,Antifreeze Coolant,Automatic Transmission Fluid,Bleach,Calcium Chloride,Citric Acid 50%,DEF,Deionized Water,Ethanol,Ethyl Acetate,Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Formic Acid,Fresh Water,Glacial Acetic Acid,Glycerin,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Isopropanol,Methanol,Methyl Ethyl Ketone,Motor Oil,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Phosphoric Acid 40% Solution,Potassium Hydroxide 50%,Salt Water,Sodium Bicarbonate 10%,Sodium Bisulfate,Sodium Bisulfite,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Xylene

Description

Suction Tube, Suction Tube ID 1 in, Suction Tube Material Polypropylene, DEF R, Deionized Water R, Isopropanol R, Kerosene X, Food Grade No, Acetic Acid -20 pct R, Acetone X, Ammonia - Liquid R, Ammonium Hydroxide R, Anhydrous Ammonia R, Antifreeze Coolant R, Automatic Transmission Fluid R, Biodiesel X, Bleach R, Brake Fluid X, Calcium Chloride R, Concentrated Nitric Acid X, Cyclohexane X, Diesel Fuel X, E85 X, Chromic Acid -5 pct X, Citric Acid -50 pct R, Ethanol R, Ethyl Acetate R
