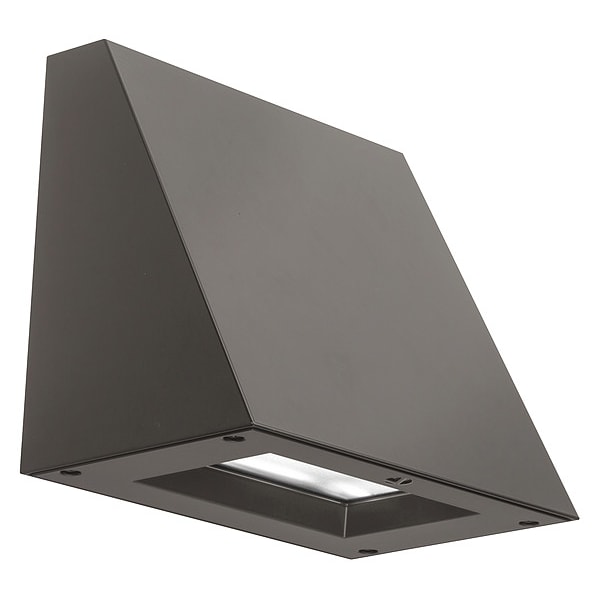

Compact Wall Pack, 1227 lm

  • Mfr # WDGE1 LED P1 40K 80CRI VF MVOLT SRM

  • Zoro # G9264817


product price: $386.99
/ea
Free Shipping & Returns

Key Features

Voltage
120 to 277V AC
Color Temperature
4000K
Lumens
1,227 lm
Includes Lamp
Lamp Included
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WDGE1 LED P1 40K 80CRI VF MVOLT SRM
Zoro #
G9264817
UPC #
194994068068
Country of Origin
Mexico

Dimensions

Width
9 in
Height
8 in
Depth
5 1/2 in
Overall Width
9 in
Manufacturers Warranty Length
5 yr
Mounting Height - Maximum
20 ft
Overall Height
8 in

Details

Item
Compact Wall Pack
Voltage
120 to 277V AC
Color Temperature
4000K
Lumens
1,227 lm
Includes Lamp
Lamp Included
IP Rating
IP66
Rated Life
100,000 hr
Fixture Housing Color
Bronze
Color Rendering Index
80
LED Replacement For
75W HPS/MH
Fixture Sensor Type
No Sensor Included
Standards
CSA Certified, IP66
Light Technology
LED
Warranty
5 yr
Light Distribution Shape
Type IV
Lumens per Watt
123 lm/W
Fixture Wattage
10 W
Housing Color
Bronze
Color Selectable
Not Selectable
Number of Hubs
1
Fixture Lens Material
Tempered Glass
Sensor Type
Not Sensor Compatible
Housing Material
Aluminum
Light Output
1,227 lm
Incandescent Wattage Equivalency
100 W
Mount Type
Surface
Metal Halide Wattage Equivalency
75 W
Lumen Selectable
Not Selectable
Light Distribution Type - IESNA
Type IV
High Pressure Sodium Wattage Equivalency
50 W
Number of Knockouts
0
Series
WDGE1

Description

Compact Wall Pack, Lumens 1,227 lm, Fixture Wattage 10 W, Voltage 120 to 277V AC, Light Distribution Shape Type IV, LED Replacement For 75W HPS/MH, Fixture Sensor Type No Sensor Included, Light Technology LED, Color Temperature 4000K, Color Rendering Index 80, Height 8 in, Width 9 in, Depth 5 1/2 in, Includes Lamp Lamp Included, Rated Life 100,000 hr, Fixture Housing Color Bronze, Fixture Lens Material Tempered Glass, IP Rating IP66, Lumens per Watt 123 lm/W, Standards CSA Certified, IP66
