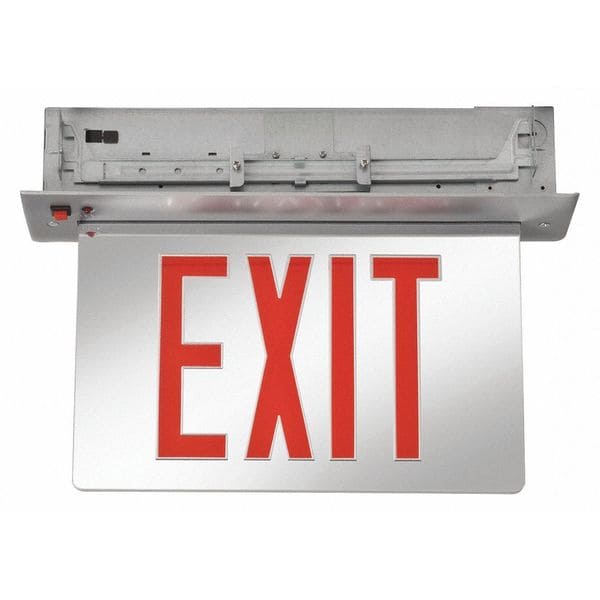

Edge-lit Exit Sign, Silver, 1 Face(s), LED, Recess Mount, Nickel Cadmium

  • Mfr # EDGRNY 1 R EL

  • Zoro # G2667411


product price: $283.99
/ea
Free Shipping & Returns

Key Features

Width
15 1/8 in
Height
13 1/4 in
Voltage
120/277 V AC
Housing Material
Aluminum
Number of Faces
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EDGRNY 1 R EL
Zoro #
G2667411
UPC #
745974327202
Country of Origin
China

Dimensions

Width
15 1/8 in
Height
13 1/4 in
Letter Size
1 in Stroke x 8 in High
Depth
4 1/8 in
Overall Height
13 1/4 in
Overall Depth
4 1/8 in
Manufacturers Warranty Length
5 yr
Text Size
1 in Stroke x 8 in High
Text Height
8 in
Overall Width
17 3/8 in
Text Stroke Width
1 in

Details

Item
Edge-lit Exit Sign
Voltage
120/277 V AC
Housing Material
Aluminum
Number of Faces
1
Mounting
Recess
Lighting Technology
LED
Emergency Illumination Time
90 min
Directional Indicators
Universal Field Selectable Chevrons
Housing Color
Silver
Battery Chemistry
Nickel Cadmium
Letter Color
Red
Battery Type
Nickel Cadmium
Lamp Type
LED
Voltage - Emergency Lighting and Exit Signs
120/277
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Item - Emergency Lighting and Exit Signs
Exit Sign
Directional Indicators - Emergency Lighting and Exit Signs
Universal Field Selectable Chevrons
Emergency Back Up Battery
Yes
Housing Material - Emergency Lighting and Exit Signs
Aluminum
Warranty
3 yr
Housing Color - Emergency Lighting and Exit Signs
Gray
Lamp Head Light Source - Emergency Lighting and Exit Signs
No Heads
Background Color
Clear
Number of Lamp Heads
0
Operating Temp. Range
32 Degrees to 100 Degrees F
Fixture Wattage
3 W
Standards
NEC, NFPA 101, OSHA, UL, UL 924
Includes
Canopy
Housing Finish
Matte
Self Diagnostics
No
Emergency Battery Backup
With Battery Backup
Text Color
Red
Compliance Type
New York City Approved
Series
EDGRNY
Lamp Wattage
3 W
Maximum Operating Temperature
100 Degrees F
Minimum Operating Temperature
32 Degrees F

Description

Edge-lit Exit Sign, Letter Color Red, Number of Faces 1, Directional Indicators - Emergency Lighting and Exit Signs Universal Field Selectable Chevrons, Lighting Technology LED, Housing Material - Emergency Lighting and Exit Signs Aluminum, Housing Color - Emergency Lighting and Exit Signs Gray, Emergency Back Up Battery Yes, Battery Chemistry Nickel Cadmium, Voltage - Emergency Lighting and Exit Signs 120/277, Number of Lamp Heads 0
