Shop LITHONIA LIGHTING

Emergency Light, LED, 6VDC, 13-3/8"L, 11W

  • Mfr # ELM4L

  • Zoro # G6252491

product price:
$
90.19
/ea

Key Features

Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
IP Rating
Not Rated
Mounting
Ceiling/Wall
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ELM4L
Zoro #
G6252491
UPC #
191723916287
Country of Origin
Mexico

Dimensions

Length
13 1/2 in
Width
3 45/64 in
Height
5 15/16 in
Overall Length
13 1/2 in
Overall Height
6 in
Manufacturers Warranty Length
5 yr
Recommended Mounting Height
7 1/2 ft
Overall Width
3 3/4 in
Wire Rope Length
13 1/2 in

Details

Item
Emergency Light
Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
IP Rating
Not Rated
Mounting
Ceiling/Wall
Standards
California Energy Commission Title 20 Section 1605.3, FCC, NFPA 101, NFPA 70, NOM, OSHA, UL 924
Housing Color - Emergency Lighting and Exit Signs
White
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Housing Material - Emergency Lighting and Exit Signs
Plastic
Warranty
5 yr
Voltage - Emergency Lighting and Exit Signs
120/277
Watts @ 90 Minutes
11 W
Number of Lamp Heads
2
Output Voltage
6 V DC
Bulb Technology
LED
Battery Chemistry
Nickel Cadmium
Optional Guard
4YFV2
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min
Operating Temp. Range
10 Degrees to 40 Degrees C
Head Lamps Adjustable
Yes
Features
Linear Pattern
Item - Emergency Lighting and Exit Signs
Emergency Light
Lamp Watts - Emergency Lighting and Exit Signs
6.6 W
Emergency Illumination Time
90 min
Input Voltage
120 to 277V AC
Minimum Operating Temperature
50 Degrees F
Bulb Included
Yes
Housing Finish
UV Stabilized
Self Diagnostics
No
Emergency Battery Backup
Yes
Compatible Guard
4YFV2
Diagnostic Testing Function
Test Button
CA Title 20 Compliant
Yes
Adjustable Lamp Heads
Yes
Emergency Wattage
11 W
Lamp Wattage
6.6 W
Lamp Head Shape
Round
Recommended Single Fixture Spacing
58 ft
Number of Bulbs
2
Lamp Output
640 lm
Remote Capable
No
Battery Voltage
6 V DC
Maximum Operating Temperature
104 Degrees F
Environmental Rating
Damp Location Rated
Lamp Color Temperature
5000K
Compliance Type
None
NEMA Rating
Not Rated
Series
ELM4L

Description

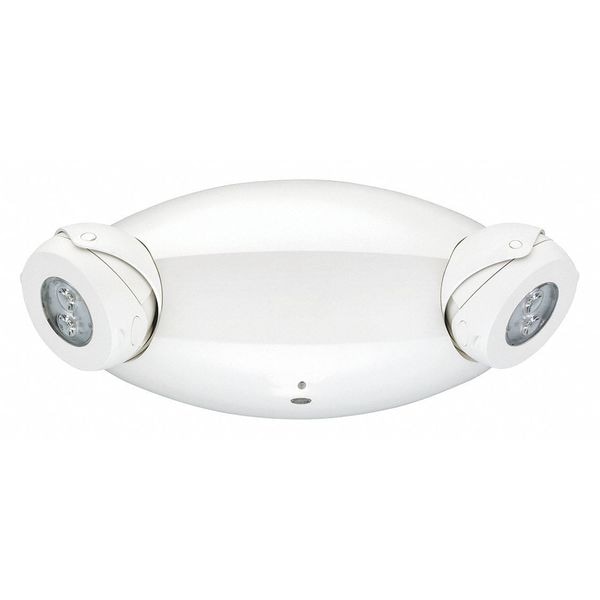

The LITHONIA LIGHTING ELM4L is an emergency light with two adjustable LED lamp heads for illuminating egress areas such as stairways and hallways during a power loss. It operates on 120 to 277V AC input and includes a nickel cadmium battery that provides 90 minutes of emergency illumination. This unit can be mounted on a wall or ceiling and is intended for indoor damp locations with an operating range of 50°F to 104°F (10°C to 40°C).

Key Features of the LITHONIA LIGHTING ELM4L Emergency Light:

  • Adjustable Lamp Heads: Two round LED lamp heads can be aimed as needed.
  • LED Lamps Included: Includes LED bulbs with 5000K color temperature and 640 lm output.
  • Emergency Backup: Built-in 6 V DC nickel cadmium battery supports emergency operation.
  • 90-Minute Runtime: Provides emergency illumination for 90 minutes during power loss.
  • Input Voltage: Rated for 120 to 277V AC applications.
  • Mounting Options: Designed for wall or ceiling mounting.
  • Damp Location Rated: Listed for indoor damp locations.
  • Test Button and Status Indicator: Allows manual testing and visual status checking.
  • Housing: White UV-stabilized plastic housing.
  • Dimensions: Approximately 13-1/2 in. long, 6 in. high, and 3-3/4 in. wide.
