  5. LED HB Light, Lumens 25000, 4k Clr, Narrow

This item is Discontinued.

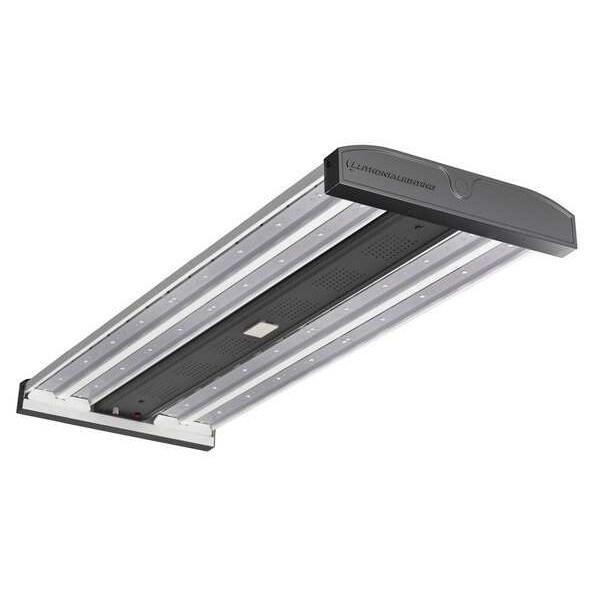

Lithonia Lighting LED HB Light, Lumens 25000, 4k Clr, Narrow IBL 24L ND LP740 DLC

LED HB Light, Lumens 25000, 4k Clr, Narrow (Discontinued)

  • Mfr # IBL 24L ND LP740 DLC
  • Zoro # G4884564
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IBL 24L ND LP740 DLC
Zoro #
G4884564
UPC #
753573373988
Country of Origin
Unknown

Dimensions

Space to Mtg. Height Ratio
0.84
Fixture Length
45 in
Fixture Height
3 1/4 in
Fixture Width
15 3/4 in
Overall Length
45 in
Overall Width
15 1/4 in
Overall Height
3 1/4 in
Nominal Size - Fixtures
1 ft x 4 ft

Details

Lighting Technology
LED
Lumens
24,000 lm
Light Distribution
Narrow
Fixture Voltage
120 to 277
Color Temperature
4000K
Standards
CSA Certified
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Max. Fixture Wattage
250 W
LED Replacement For
4 Lamp T5HO, 400W HID, 6-lamp T8
Color Rendering Index
67.0
Lamp Watts - Fixtures
197 W
Lighting Certification
DesignLights Consortium (DLC)
Fixture Rated Life
100,000 hr
Includes
4000k Coloring
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Warranty
5 yr
CRI
70
Fixture Lens Type
Semi-Diffused
Item
LED High Bay
Fixture Housing Color
Black
Occupancy Sensor
No
Fixture Temp. Range
-13 Degrees to 122 Degrees F
Color Temp.
4000K
Watts
245
Fixture Housing Material
Aluminum
Lumens Per Watt
103.0
Fixture Mounting Type
Ceiling, Suspended
Green Certification or Other Recognition
DesignLights Consortium (DLC)
Number of Light Bars
2
Fixture Reflector Material
Aluminum
Emergency Back Up Battery
No
Dimmable
Yes
Bulb Technology
LED
Rated Life
0 hr, 100 hr
Voltage
120 to 277V
Warranty
5 Years
Lumens per Watt
103 lm/W
Emergency Battery Backup
No
For Bulb Shape
Linear
Housing Color
Black
Bay Light Type
High Bay
Housing Material
Aluminum
For Bulb Type
LED
Min. Ambient Temp.
-40 Degrees F
Series
IBL
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Max. Ambient Temp.
104 Degrees F
Lens Material
Acrylic
Lamp Type
Integrated LED
Number of Bulbs
4

Description

LED High Bay, LED Replacement For 400W HPS/MH, Fixture Voltage 120 to 277, 245 Watts, 25,000 Lumens, Color Temp. 4000K, Fixture Rated Life 100,000 hr., Standards DLC, Light Distribution Narrow, Fixture Length 45 In., Fixture Width 15-3/4 In., Fixture Height 3-1/4 In., Number of Light Bars 2, Space to Mtg. Height Ratio 0.84, CRI 70
