  6. LED Photocontrol, 1,000 W, Yellow, 5 sec Max, 2 sec Min

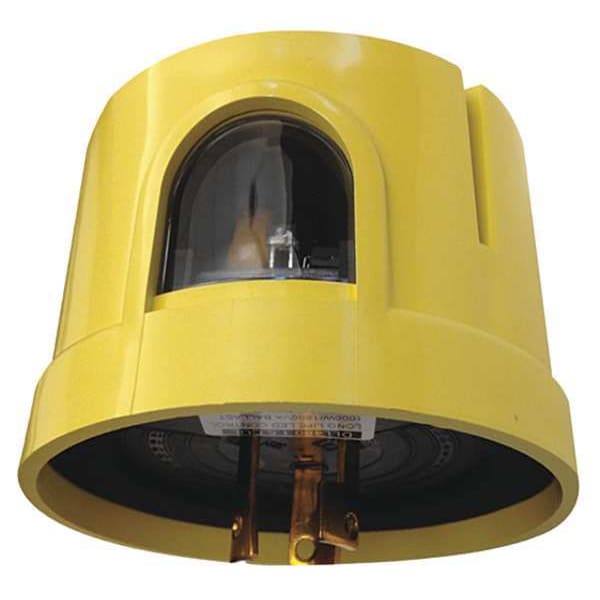

Lithonia Lighting LED Photocontrol, 1,000 W, Yellow, 5 sec Max, 2 sec Min DLL480 1.5 CUL JU - main

LED Photocontrol, 1,000 W, Yellow, 5 sec Max, 2 sec Min

  • Mfr # DLL480 1.5 CUL JU

  • Zoro # G6178085

product price:  $59.16
/ea

Key Features

Foot Candles On
1.5
Foot Candles Off
2.25
Temp. Range
-40 Degrees to 158 Degrees F
Housing Material
Plastic
Depth
2 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DLL480 1.5 CUL JU
Zoro #
G6178085
UPC #
-
Country of Origin
China

Dimensions

Depth
2 9/16 in
Width
3 1/4 in
Manufacturers Warranty Length
10 yr
Length
3 1/4 in
Overall Height
2.55 in
Overall Diameter
3.25 in

Details

Item
Photocontrol
Foot Candles On
1.5
Foot Candles Off
2.25
Temp. Range
-40 Degrees to 158 Degrees F
Housing Material
Plastic
Contact Form
SPST
Enclosure Type
Raintight
Description/Special Features
LED Lighting Fixtures That Require Dusk to Dawn Control, LED Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Setting
Dusk to Dawn
For Use With
LED Fixture
Standards
ANSI C136.10, RoHS, UL Listed
Series
DLL
Application Type
Automotive & Parking, Roadways, Bridges & Tunnels
Control Device Type
Photocell
Mounting Type
Fixture Attached
Housing Finish
Green
On Illumination - Maximum
1.5 fc
AC Operating Voltage
480V AC
Body Color
Yellow
Wattage - Maximum
1,000 W
Indoor/Outdoor Usage
Outdoor
Ballast Current - Maximum
15 A
Off Illumination - Maximum
1.5 fc
Features
1280J Surge Arrestor, UV Inhibitor, Double Thick Enclosure and Lens, Dual Zener Diodes, Full Wave Rectified Power Supply, Capacitor, Solid Brass Contact Blades
Mounting Style
Turn Lock
Incandescent Current - Maximum
8.3 A
Compatible Lighting
LED
Operating Temperature - Minimum
-40 Degrees F
Time Delay - Maximum
5 sec
Resistance Properties
Surge Voltage Resistant
Operating Temperature - Maximum
158 Degrees F
Time Delay - Minimum
2 sec

Description

Photocontrol, Mounting Turn-Lock, Voltage 480V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 15 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Yellow, Temp. Range -40 Degrees to 158 Degrees F, Length 3 1/4 in, Width 3 1/4 in, Depth 2 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Plastic, Setting Dusk to Dawn, Standards ANSI C136.10, RoHS, UL Listed, Includes Not Applicable
