Shop LITHONIA LIGHTING

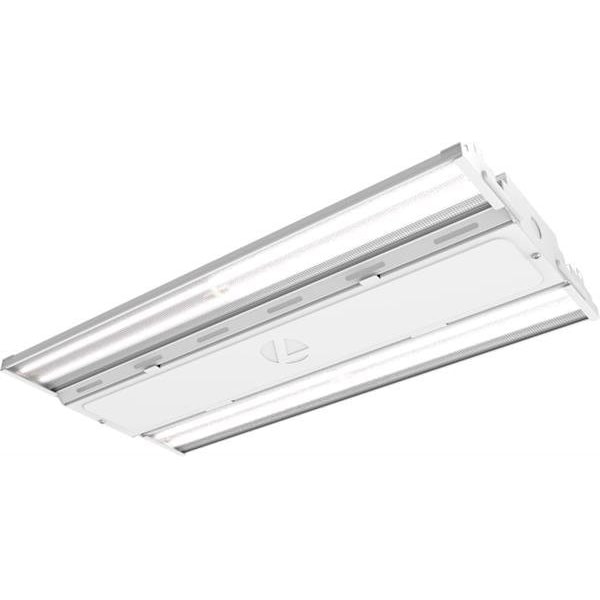

LEDHighBay, White, CPHB, 143/8inL, 111/2inW

  • Mfr # CPHB ALO13 MVOLT SWW9 80CRI DWH

  • Zoro # G008396782

product price:
$
204.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Suggested Fixture Mounting Height
12 to 25 ft
Lumens
12000 lm, 15000 lm, 18000 lm
Light Distribution
General
Color Temperature
4000K, 5000K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CPHB ALO13 MVOLT SWW9 80CRI DWH
Zoro #
G008396782
UPC #
00196183428561
Country of Origin
Malaysia

Dimensions

Suggested Fixture Mounting Height
12 to 25 ft
Overall Length
14 3/8 in
Overall Width
11 1/2 in
Overall Height
2 5/16 in
Nominal Length
14 3/8 in
Suggested Mounting Height - Minimum
12 ft
Suggested Mounting Height - Maximum
25 ft
Wire Rope Length
14 3/8 in
Length
14 3/8 in

Details

Lighting Technology
LED
Lumens
12000 lm, 15000 lm, 18000 lm
Light Distribution
General
Color Temperature
4000K, 5000K
Standards
CSA
Max. Fixture Wattage
125 W
LED Replacement For
(4) lamp T5HO, (6) lamp T8 HBF, Up to 250W MH
Number of Bulbs
0
For Bulb Type
Integrated LED
Voltage
120 to 277V AC
Lamp Watts - Fixtures
125 W
Lens Material
Acrylic
Housing Material
Aluminum
Series
CPHB
Dimmable
Yes
Ballast Start Type
No Ballast Required
Reflector Type
Enclosed
CA Title 24 Compliant
No
Housing Color
White
Min. Ambient Temp.
-40 Degrees F
Bay Light Type
High Bay
Rated Life
100,000 hr
Item
LED High Bay
Includes
Mounting Hardware
Max. Ambient Temp.
131 Degrees F
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Premium Listed
Lamp Type
Integrated LED
Ingress Protection Rating
Not Rated
Lighting Certification
DesignLights Consortium (DLC)
Maximum Fixture Wattage
125 W
Bulbs Included
Integrated
Product Type
LED High Bay Fixture
Color Selectable
Selectable
Lumen Selectable
Selectable
Ambient Temperature - Minimum
-40 Degrees F
Mounting Style
Ceiling, Suspended
Ambient Temperature - Maximum
131 Degrees F
Emergency Battery Backup
No
Light Output
12,000 lm, 15,000 lm, 18,000 lm

Description

LED High Bay
