  9. LEDHighBay, White, IBG, 255/8inL, 113/4inW

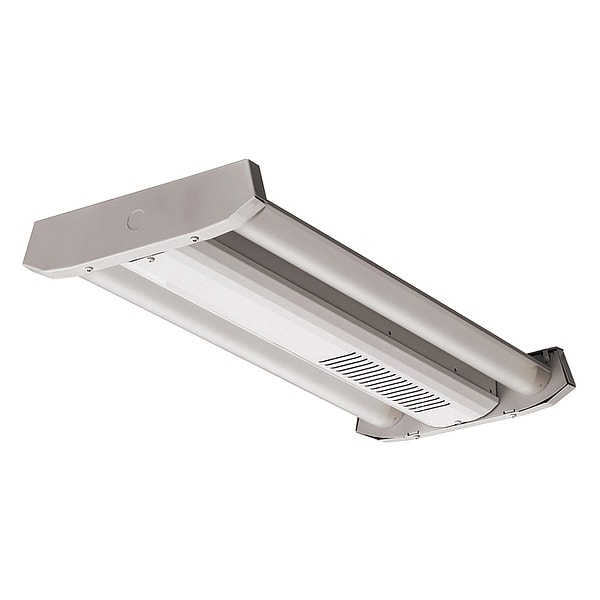

Lithonia Lighting LEDHighBay, White, IBG, 255/8inL, 113/4inW IBG 15L MVOLT - main

LEDHighBay, White, IBG, 255/8inL, 113/4inW

  • Mfr # IBG 15L MVOLT

  • Zoro # G8342460

product price: $335.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Suggested Fixture Mounting Height
10 to 20 ft
Light Distribution
General
Fixture Voltage
120 to 277
Color Temperature
4000K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IBG 15L MVOLT
Zoro #
G8342460
UPC #
194994009184
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
10 to 20 ft
Fixture Length
25 5/8 in
Fixture Width
11 3/4 in
Fixture Height
2 3/4 in
Nominal Size - Fixtures
1 ft x 2 ft
Overall Width
11 3/4 in
Overall Height
2 3/4 in
Overall Length
25 5/8 in

Details

Lighting Technology
LED
Lumens
14,774 lm
Light Distribution
General
Fixture Voltage
120 to 277
Color Temperature
4000K
Lamp Type - Fixtures
Integrated LED
Standards
CSA Certified
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Max. Fixture Wattage
95 W
LED Replacement For
200W MH, 6 Lamp T8 NBF
Lighting Certification
DesignLights Consortium (DLC)
Occupancy Sensor
No
Housing Color
White
Color Rendering Index
80.0
Housing Material
Steel
Fixture Housing Material
Steel
Fixture Reflector Material
Acrylic
Voltage
120 to 277V
Fixture Housing Color
White
Fixture Rated Life
60,000 hr
Rated Life
60,000 hr
Item
LED High Bay
Fixture Temp. Range
-40 Degrees to 131 Degrees F
Emergency Battery Backup
No
Dimmable
Yes
Fixture Lens Type
Clear
Fixture Series
IBG
Emergency Back Up Battery
No
Number of Light Bars
2
Reflector Material
Acrylic
Fixture Lens Material
Acrylic
Reflector Type
Enclosed
Series
IBG
Lamp Watts - Fixtures
93 W
Fixture Mounting Type
Bracket, Chain, Cable, Hook, Pendant, Surface
Fixture Warranty
5 yr Limited Warranty
Lumens per Watt
159 lm/W
For Bulb Type
Integrated LED
Max. Ambient Temp.
131 Degrees F
Lens Material
Acrylic
Housing Finish
Gloss
CA Title 24 Compliant
No
Lamp Type
Integrated LED
Ingress Protection Rating
Not Rated
Number of Bulbs
0
Bay Light Type
High Bay
Ambient Temp. Range
-40 Degrees to 131 Degrees F
Bulbs Included
Yes
For Bulb Base Type
Integrated LED
Min. Ambient Temp.
-40 Degrees F
For Bulb Shape
Integrated LED

Description

Suggested Fixture Mounting Height 10 to 20 ft., 14,774 Lumens, Light Distribution General, Color Temperature 4000K, Lighting Technology LED, Standards CSA, Fixture Type - High and Low Bay Fixtures Linear High Bay, Fixture Voltage 120 to 277, Max. Fixture Wattage 95.0, Fixture Temp. Range -40 Degrees to 131 Degrees F, Color Rendering Index 80.0, Number of Light Bars 2, Lamp Type - Fixtures Integrated LED, Fixture Lens Type Acrylic, Fixture Lens Material Acrylic, Lumens per Watt 159.0
