  9. LEDTrffrRtroftKit, 1ftL, 4ftW, 120to277VAC

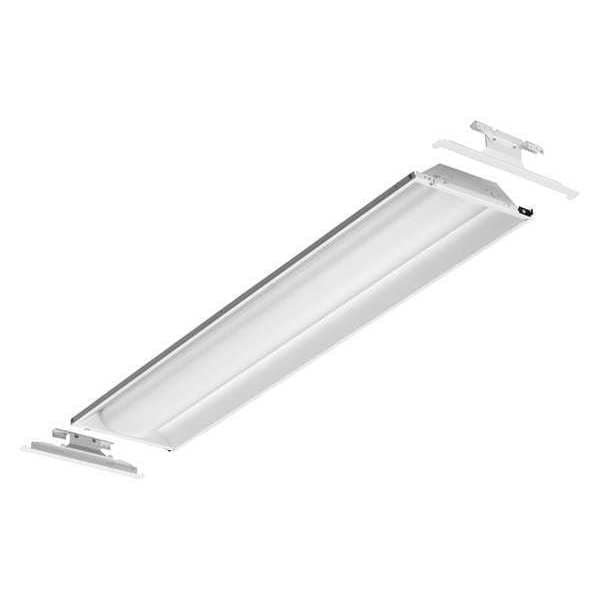

Lithonia Lighting LEDTrffrRtroftKit, 1ftL, 4ftW, 120to277VAC BLT4R 20L ADP EZ1 LP835 - main

LEDTrffrRtroftKit, 1ftL, 4ftW, 120to277VAC

  • Mfr # BLT4R 20L ADP EZ1 LP835

  • Zoro # G7471418

product price: $151.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Recessed Troffer
Nominal Size - Fixtures
1 ft x 4 ft
Lighting Technology
LED
Voltage
120 to 277V AC
Watts
19
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BLT4R 20L ADP EZ1 LP835
Zoro #
G7471418
UPC #
190887728620
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
1 ft x 4 ft
Fixture Height
3 3/4 in
Fixture Width
12 in
Fixture Length
46 5/8 in
Overall Width
12 in
Overall Height
3 3/4 in
Overall Length
46 3/4 in
Nominal Size
1 ft x 4 ft

Details

Item
Recessed Troffer
Fixture Item
Recessed Troffer
Lighting Technology
LED
Voltage
120 to 277V AC
Watts
19
Lighting Certification
DesignLights Consortium (DLC) 5.0 Premium
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
1,888 lm
Color Temperature
3500K
Color Rendering Index
82
Max. Fixture Wattage
15 W
Fixture Voltage
120 to 277
Bulb Technology
LED
Color Temp.
3500K
LED Replacement For
2 Lamp T8
Standards
cULus Listed, LM80
Emergency Back Up Battery
No
Fixture Warranty
5 yr Limited Warranty
Fixture Rated Life
60,000 hr
CRI
80
Fixture Temp. Range
-20 Degrees to 50 Degrees C
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Design
Economy
Lumens Per Watt
127.6
Housing Material
Cold Rolled Steel (Door Frame and Reflector Assembly), Steel (Universal End Bracket)
Lens Type
Ribbed Diffuser
Rated Life
60,000 hr
Housing Color
White
Lumens per Watt
128 lm/W
For Bulb Type
Integrated LED
Bulb Included
Yes
Series
2BLTR
Finish
Matte, Powder Coated
Emergency Battery Backup
No
Fixture Ballast Type
No Ballast Required
Sensor Type
No Sensor
Light Technology
LED
Dimming Range
100% to 1%
Min. Ambient Temp.
-4 Degrees F
Max. Ambient Temp.
122 Degrees F
For Max. Bulb Wattage
15 W
Lens Shape
Center Basket
Lens Material
Acrylic
Ballast Start Type
No Ballast
Dimming Method
0 to 10V

Description

LED Troffer Retrofit Kit, Lumens 1,888 lm, Lumens Range 0 to 1,999 lm, Light Technology LED, 120 to 277V AC, Lighting Certification DesignLights Consortium (DLC) 5.0 Premium, Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 3 3/4 in, Overall Length 46 3/4 in, Overall Width 12 in, Color Rendering Index 82, Color Temperature 3500K, Dimming Method 0-10V, Dimming Range 100 Percent to 1 Percent, LED Replacement For (2) Lamp T8, Lens Type Ribbed Diffuser
