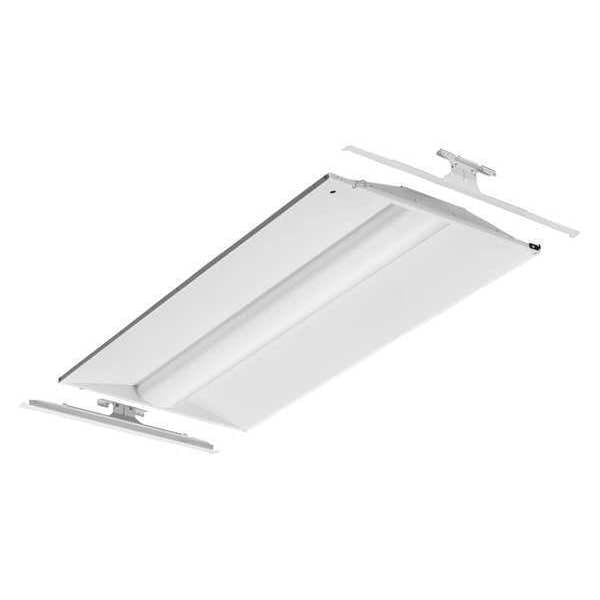

Lithonia Lighting LEDTrffrRtroftKit, 2ftL, 4ftW, 120to277VAC 2BLT4R 48L ADP EZ1 LP835 - main

LEDTrffrRtroftKit, 2ftL, 4ftW, 120to277VAC

  • Mfr # 2BLT4R 48L ADP EZ1 LP835

  • Zoro # G7471497

product price: $183.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Recessed Troffer
Nominal Size - Fixtures
2 ft x 4 ft
Lighting Technology
LED
Voltage
120 to 277V
Watts
45
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2BLT4R 48L ADP EZ1 LP835
Zoro #
G7471497
UPC #
190887425772
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 4 ft
Fixture Length
46 5/8 in
Fixture Width
24 in
Fixture Height
3 in
Nominal Size
2 ft x 4 ft
Overall Height
3 in
Overall Width
24 in
Overall Length
46 3/4 in

Details

Fixture Item
Recessed Troffer
Item
Recessed Troffer
Lighting Technology
LED
Voltage
120 to 277V
Watts
45
Lighting Certification
DesignLights Consortium (DLC) 5.0 Premium
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
4,910 lm
Color Temperature
3500K
Color Rendering Index
82
Max. Fixture Wattage
38 W
Bulb Technology
LED
Fixture Rated Life
60,000 hr
CRI
80
Green Certification or Other Recognition
DesignLights Consortium (DLC)
Lumens Per Watt
114.0
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Warranty
5 yr Limited Warranty
Standards
cULus Listed, LM80
Color Temp.
3500K
Fixture Temp. Range
-20 Degrees to 50 Degrees C
Fixture Voltage
120 to 277
Emergency Back Up Battery
No
LED Replacement For
4 Lamp T8
Design
Economy
Housing Material
Cold Rolled Steel (Door Frame and Reflector Assembly), Steel (Universal End Bracket)
Rated Life
60,000 hr
Lens Type
Ribbed Diffuser
Housing Color
White
Lumens per Watt
130 lm/W
Dimming Method
0 to 10V
Bulb Included
Yes
Lens Shape
Center Basket
Fixture Ballast Type
No Ballast Required
Series
2BLTR
Min. Ambient Temp.
-4 Degrees F
Ballast Start Type
No Ballast
For Max. Bulb Wattage
38 W
Sensor Type
No Sensor
For Bulb Type
Integrated LED
Finish
Matte, Powder Coated
Lens Material
Acrylic
Emergency Battery Backup
No
Max. Ambient Temp.
122 Degrees F
Dimming Range
100% to 10%
Light Technology
LED

Description

LED Troffer Retrofit Kit, Lumens 4,910 lm, Lumens Range 4,000 to 5,999 lm, Light Technology LED, 120 to 277V AC, Lighting Certification DesignLights Consortium (DLC) 5.0 Premium, Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 3 in, Overall Length 46 3/4 in, Overall Width 24 in, Color Rendering Index 82, Color Temperature 3500K, Dimming Method 0-10V, Dimming Range 100 Percent to 10 Percent, LED Replacement For (4) Lamp T8, Lens Type Ribbed Diffuser
