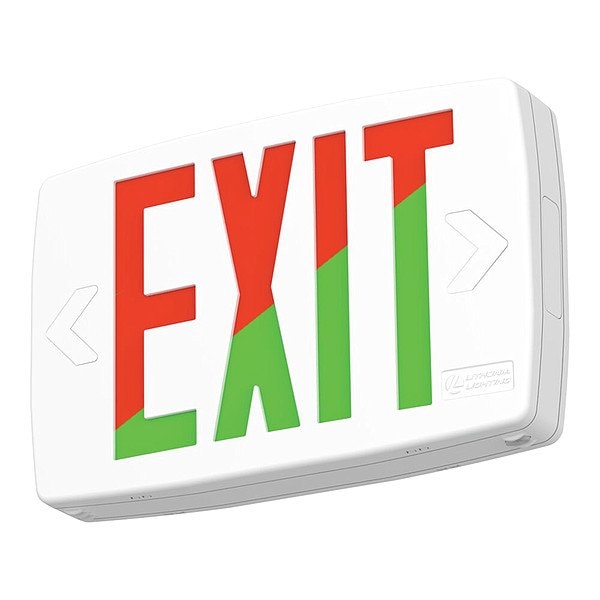

Quantum LED Exit Sign, White, 1 or 2 Face(s), LED, Not Battery Powered

Mfr # LQM S W RG MVOLT M6
Zoro # G516476617

77.15

Key Features

Voltage

MULTI VOLT 120-277VAC

Housing Material

Thermoplastic

Number of Faces

1 or 2

Lighting Technology

LED

Emergency Illumination Time

90 min

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LQM S W RG MVOLT M6
Zoro #: G516476617
UPC #: 0198934545060
Country of Origin: Viet Nam

Dimensions

Overall Depth: 2 1/8 in
Overall Height: 7 1/2 in
Overall Width: 2 1/8 in
Manufacturers Warranty Length: 5 yr

Details

Item: Quantum LED Exit Sign
Voltage: MULTI VOLT 120-277VAC
Housing Material: Thermoplastic
Number of Faces: 1 or 2
Lighting Technology: LED
Emergency Illumination Time: 90 min
Directional Indicators: Directional Chevrons
Housing Color: White
Battery Chemistry: Not Battery Powered
Includes: extra faceplate to quickly convert from single to double face exit sign depending on the application, Manual push button test standard
Standards: California Energy Commission Title 20 section 1605.3 (W)(4), Meets UL924, NFPA 101 (current Life Safety Code), NEC, NOM certified, OSHA Illumination Standards. Meets all applicable FCC Title 47, Part 15, Subpart B requirements
Background Color: White
Fixture Wattage: 1.5 W
Housing Finish: Matte
Maximum Operating Temperature: 104 Degrees F
Emergency Battery Backup: No
Series: LQM
Self Diagnostics: No
Minimum Operating Temperature: 50 Degrees F
Remote Capable: No
Lamp Wattage: 1.9 W
IP Rating: Not Rated
Text Color: Red/Green Switchable
Application: Damp Location Listed
CA Title 20 Compliant: Yes
Environmental Rating: Damp Location Rated
Compliance Type: None

Description

Quantum LED Exit Sign, Number of Faces 1 or 2, Lighting Technology LED, Battery Chemistry Not Battery Powered, Fixture Wattage 1.5 W, Background Color White

Restrictions

Hazardous material
