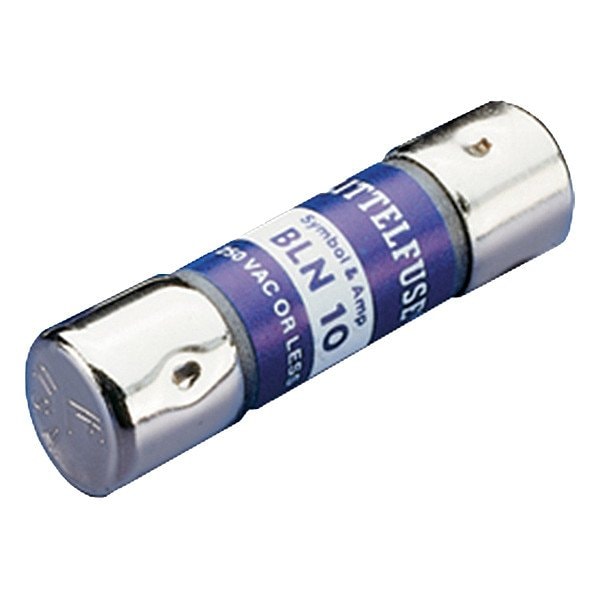

Fuse, BLN Series, Fast-Acting, 250 V AC, Non-Indicating
Mfr # BLN01.5
Zoro # G516556739
product price:Â $2.89
/eaKey Features
Series
BLN
Speed
Fast-Acting
AC Voltage Rating
250 V AC
Visual Indication
Non-Indicating
Body Style
Cylindrical
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
BLN01.5
Zoro #
G516556739
UPC #
079458018042
Country of Origin
Mexico
Dimensions
Overall Diameter
13/32 in
Overall Length
1 1/2 in
Details
Series
BLN
Speed
Fast-Acting
Amps
1.5A
AC Voltage Rating
250 V AC
Visual Indication
Non-Indicating
Body Style
Cylindrical
Body Material
Cardboard
Equivalent Brand and Series
Littelfuse BLN
Fits Fuse Block Style
Non-Rejection
Compatible Fuse Block Series
L60030M
DC Voltage Rating
Not Rated
Item
Fuse
Class
Midget
Equivalent Series
BLN
Current
1.5 A
Standards
CE, PSE, RoHS, UL Listed
Interrupt Rating - AC
10 kA
Description
Fuse, 250 V AC, Not Rated, Class Midget, BLN Series, Non-Indicating, Fast-Acting, Body Style Cylindrical, Non-Rejection, Equivalent Brand and Series Littelfuse BLN, Equivalent Series BLN, Compatible Fuse Block Series L60030M, Body Material Cardboard, Standards CE, PSE, RoHS, UL Listed
