Shop LITTLE GIANT PUMP

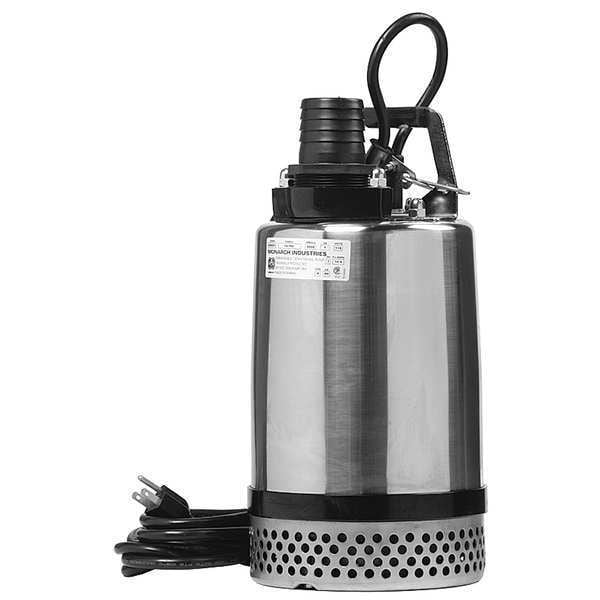

1 HP 2" Plug-In Utility Pump 115 No Switch Included

  • Mfr # 620241

  • Zoro # G0820687

product price:  $892.99
/ea
Free Shipping & Returns

Key Features

Cord Length
20 ft
Discharge NPT
2"
Housing Material
Stainless steel
HP
1
Hz
60
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
620241
Zoro #
G0820687
UPC #
010121137868
Country of Origin
Taiwan, Province of China

Dimensions

Cord Length
20 ft
Max. Diameter Solids
1/4 in
Length
7-1/4"
Max. Dia. Solids
1/4"
Width
7-1/4"
Cord Size
14/3
Diameter
7-1/4"
Cord Length - Pumps
20 ft.
Manufacturers Warranty Length
2 yr
Height
14"
Width at Widest Point
7 1/4 in
Discharge Dia.
2 in
Overall Height
14 1/4 in
Body Dia.
7 1/4 in
Discharge External Diameter
2 in
Body Diameter
7 1/4 in
Sump Pit Diameter - Minimum
8 1/2 in
Depth Pumped - Minimum
7/8 in
Operating Water Depth - Minimum
1 in
Solids Diameter - Maximum
3/16 in

Details

Discharge NPT
2"
Housing Material
Stainless steel
HP
1
Hz
60
Impeller Material
Ductile Iron
Includes
20 ft power cord
Max. Head
52 ft
Motor RPM
3450
Motor Type
PSC
Shaft Seal
Carbon/Ceramic, Silicon Carbide
Voltage
115
Phase
Single
Handle
Stainless Steel
Bearing Type
Ball
Pump RPM
3450
GPM of Water @ 15 Ft. of Head
71
GPM of Water @ 5 Ft. of Head
80
Pump Body Material
Stainless Steel
GPM of Water @ 35 Ft. of Head
46
Max. Head - Pumps
52 ft.
GPM of Water @ 45 Ft. of Head
24
Item
Plug-In Utility Pump
Impeller Material - Pumps
Ductile Iron
GPM of Water @ 25 Ft. of Head
60
Max. Liquid Temp.
120 Degrees F
GPM of Water @ 30 Ft. of Head
54
Voltage - Pumps
120VAC
Input Phase AC
1
Switch Type - Pumps
No Switch Included
Amps
10 AC
Switch Type
No Switch Included
Duty
Continuous
GPM of Water @ 40 Ft. of Head
38
Shaft Seal Material - Pumps
Carbon, Ceramic, Silicon Carbide
GPM of Water @ 10 Ft. of Head
76
Thermal Protection
Yes
Item - Dewatering Pumps
Utility/Dewatering Pump
Agency Compliance
cCSAus
GPM of Water @ 20 Ft. of Head
68
Cord Type
SJTW
Base Material
Cast Iron
Application
General Construction Dewatering
Discharge Gender
Male
Discharge
2 in MNPT
Phase - Pumps
1
Duty Cycle
Continuous
Flow Rate @ 10 Ft. of Head
76 gpm
Body Material
Stainless Steel
Switch Actuation
No Switch Included
Flow Rate @ 20 Ft. of Head
68 gpm
RPM
3,450 RPM
Flow Rate @ 5 Ft. of Head
80 gpm
Flow Rate @ 15 Ft. of Head
73 gpm
Rated Voltage
115V AC
Discharge Standard
NPT
Pump Type
Dewatering/Utility
Volute Material
Cast Iron
Series
FLS-750
Feet of Head - Maximum
52 ft
Horsepower
1 hp
Standards
cCSAus
Rotation Speed - Maximum
3,450 RPM
Power Source
Corded Electric
Current
10.00 A
Flow Rate - Maximum
80 gpm
For Media Type
Clear Water
Shaft Seal Material
Silicon
Flow Rate @ 5 ft of Head
80 gpm
Motor Housing Material
Stainless Steel
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Frequency
60 Hz
Liquid Temperature - Maximum
104 Degrees F
Flow Rate @ 10 ft of Head
76 gpm
Discharge External Standard
NPT
Discharge External Gender
Male
Motor Enclosure
Stainless Steel
Power Source - TS Only
Corded Electric

Description

Plug-In Utility Pump, HP 1, Rated Voltage 115V AC, Hz 60, Phase - Pumps 1, Amps 10 AC, Switch Actuation No Switch Included, Body Material Stainless Steel, Impeller Material Ductile Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Silicon Carbide, Flow Rate @ 5 Ft. of Head 80 gpm, Flow Rate @ 10 Ft. of Head 76 gpm, Flow Rate @ 15 Ft. of Head 73 gpm, Flow Rate @ 20 Ft. of Head 68 gpm, Max. Head 52 ft, Body Dia. 7 1/4 in, Width at Widest Point 7 1/4 in, Overall Height 14 1/4 in
