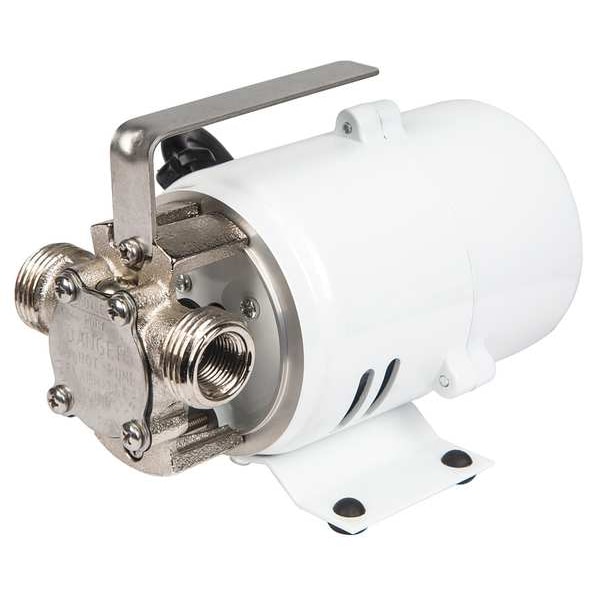

115 VAC Nickel-Plated Brass Utility Pump

  • Mfr # 555112

  • Zoro # G3455742


product price:  $156.60
/ea
Free Shipping & Returns

Key Features

Power Source
Corded Electric
HP
1/10 hp
Body Material
Nickel-Plated Brass
Cord Length
6 ft
Self-Priming
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
555112
Zoro #
G3455742
UPC #
010121106635
Country of Origin
United States

Dimensions

Cord Length
6 ft
Width (In.)
4 in
Length (In.)
6 11/16 in
Height (In.)
3 3/8 in
Overall Width
3 in
Overall Height
4.7 in
Overall Length
6.7 in
Media Intake Connection Size
3/4 in
Discharge Connection Size
3/8 in
Inlet Internal Diameter
3/8 in
Discharge Internal Diameter
3/8 in
Inlet External Diameter
3/4 in
Discharge External Diameter
3/4 in

Details

Power Source
Corded Electric
HP
1/10 hp
Body Material
Nickel-Plated Brass
Self-Priming
Yes
Voltage
115 V
Thermal Protection
Y
Bearings
Sleeve Bearings
Cord
6 ft
Motor Enclosure
Open Drip Proof
Motor Type
AC
Max. Suction Lift (Ft.)
7 ft
Inlet/Outlet (In.)
3/4 in male garden hose thread and 3/8 in FNPT
Seals
Buna-N
GPH of Water @ 1 Ft. of Head
360 gph
Duty
Intermittent
Item
Utility Pump
GPH of Water @ 5 Total Ft. of Head
330 gph
Amps AC
1.6
GPH of Water @ 10 Ft. of Head
300 gph
Includes
2 Extra Gaskets and 2 Impellers
Max. Head (Ft.)
48 ft
Shaft Material
Stainless Steel
RPM
12,000 RPM
Application
Water Transfer
Type
Compact Utility
Impeller
Buna-N
GPH of Water @ 20 Ft. of Head
250 gph
Pumps Up To (Ft.)
48 ft
Max. Liquid Temp. (F)
120 Degrees F
Impeller Material
Buna-N
Bearing Type
Sleeve
Housing Material
Brass
Operating Pressure - Maximum
10.8 psi
Horsepower - Maximum
1/10 hp
Feet of Head - Maximum
25 ft
Current
1.6 A
Viscosity - Maximum
1 cSt
Media Temperature - Maximum
140 Degrees F
Seal Type
Lip
Nameplate Voltage
115V AC
Flow Rate @ 10 ft of Head - Maximum
6 gpm
Flow Rate @ 1 ft of Head - Maximum
360 gph
Motor Speed - Maximum
12,000 RPM
Priming
Self-Priming
Frequency
60 Hz
Wetted Material
Brass, Buna-N
Seal Material
Buna-N
Suction Lift - Maximum
7 ft
For Media Type
Clear Water
Flow Rate @ 20 ft of Head - Maximum
250 gph
Discharge Connection Type
FNPT
Media Intake Connection Type
FNPT
Discharge External Standard
Garden Hose Thread
Inlet Internal Standard
NPT
Motor Housing Material
Stainless Steel
Inlet External Gender
Male
Discharge External Gender
Male
Discharge Internal Standard
NPT
Discharge Internal Gender
Female
Inlet Internal Gender
Female
Inlet External Standard
Garden Hose Thread

Description

The LITTLE GIANT PUMP - 555112 is a compact utility pump for water transfer applications using clear water. It operates on 115V AC power with a 1/10 hp motor and is self-priming, allowing it to move water for tasks such as draining water heaters or aquariums, emptying water beds, and transferring water to an RV. The pump is designed for intermittent duty and includes a 6 ft power cord.

Key Features of the LITTLE GIANT PUMP - 555112:

  • Self-priming operation: Can dewater with a maximum suction lift of 7 ft for water transfer use.
  • Flow performance: Delivers up to 360 gph at 1 ft of head, 300 gph at 10 ft, and 250 gph at 20 ft.
  • Maximum head: Pumps up to 48 ft.
  • Connection sizes: Inlet and outlet include 3/4 in male garden hose thread and 3/8 in FNPT connections.
  • Motor and power: 115V AC, 1.6 A, 60 Hz corded electric motor with a maximum speed of 12,000 RPM.
  • Construction materials: Brass housing/body with stainless steel motor housing and shaft; Buna-N impeller and seals.
  • Temperature limits: Handles liquid temperatures up to 140 degrees F.
  • Included parts: Comes with 2 extra impellers and 2 extra gaskets.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
