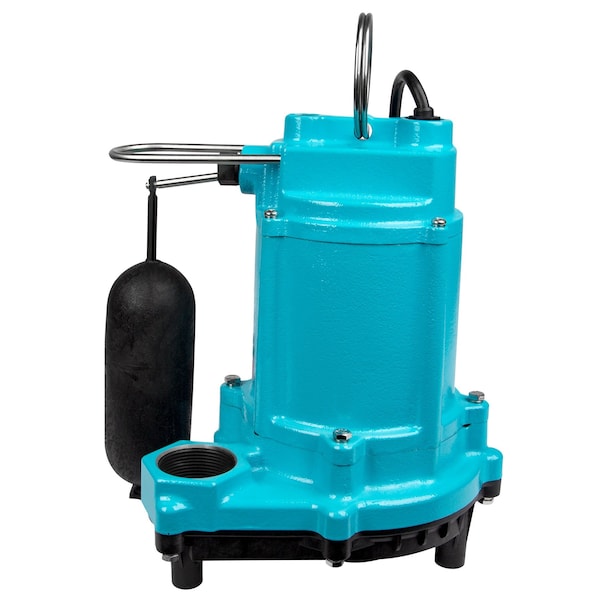

Little Giant Pump 1/3 HP 1-1/2" F Submersible Sump Pump 115V 506807 - main

1/3 HP 1-1/2" F Submersible Sump Pump 115V

  • Mfr # 506807

  • Zoro # G8096761

product price:  $220.99
/ea
Free Shipping & Returns

Key Features

Cord Length
10 ft
Discharge NPT
1-1/2" F
Housing Material
Epoxy Coated Cast Iron
HP
1/3
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
506807
Zoro #
G8096761
UPC #
010121152335
Country of Origin
China

Dimensions

Cord Length
10 ft
Manufacturers Warranty Length
3 yr
Max. Diameter Solids
1/2 in
Height
11-5/64"
Min. Sump Pit Dia.
18 in
Cord Length - Pumps
10 ft.
Diameter
8-31/64"
Length
10-43/64"
Width
8-31/64"
Width at Widest Point
10 3/4 in
Discharge Dia.
1 1/2 in
Body Dia.
8 31/64 in
Overall Height
11 1/4 in
Body Diameter
8 1/2 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
1 1/2 in
Solids Diameter - Maximum
1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Epoxy Coated Cast Iron
HP
1/3
Hz
60 Hz
Impeller Material
Nylon
Max. Head
28 ft
Max. Temp.
140 Degrees F
Motor RPM
3450
Motor Type
Permanent Split Capacitor
Shaft Seal
Nitrile with Carbon and Ceramic Faces
Voltage
115V
Phase
Single
Outlet
1-1/2" FNPT
GPM of Water @ 15 Ft. of Head
42
Base Material
Polypropylene
Gauge/Conductor
18/3
NEC Cord Designation
SJTW
On Point
8 - 11 in
Impeller Material - Pumps
Nylon
Bearing Type
Upper and Lower Ball
Pump Body Material
Cast Iron
Max. Head - Pumps
28 ft.
Duty
Continuous
Max. Liquid Temp.
140 Degrees F
Amps - Pumps
5.00
Item - Sump Pumps
Submersible Sump Pump
Alarm Included
No
Off Point
2 - 5 in
Item
Submersible Sump Pump
Agency Compliance
cCSAus
Mechanical Seal
Buna N/Carbon/Ceramic
GPM of Water @ 10 Ft. of Head
50
Thermal Protection
Auto
Pump RPM
3450
Voltage - Pumps
120VAC
Switch Type - Pumps
Vertical
Handle
Yes
GPM of Water @ 5 Ft. of Head
53
GPM of Water @ 20 Ft. of Head
34
Shaft Seal Material - Pumps
Buna-N, Carbon, Ceramic
Amps
5 A
Application
Dewatering, Transfer, Waste Removal
RPM
3,450 RPM
Flow Rate @ 5 Ft. of Head
53 gpm
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
42 gpm
Body Material
Cast Iron
Duty Cycle
Continuous
Discharge Gender
Female
Flow Rate @ 20 Ft. of Head
34 gpm
Discharge
1 1/2 in FNPT
Rated Voltage
115V AC
Switch Actuation
Vertical Float
Switch Electrical Connection
Integral
Flow Rate @ 10 Ft. of Head
50 gpm
Feet of Head - Maximum
28 ft
Series
6EC-CIA-SFS
Horsepower
1/3 hp
Shaft Seal Type
Single Mechanical
Requires Control Panel
No Control Panel Required
Volute Material
Cast Iron
Standards
cCSAus
For Media Type
Effluent Water
Flow Rate @ 10 ft of Head
50 gpm
Installation
Submersible
Current
5.0 A
Liquid Temperature - Maximum
140 Degrees F
For Industry
Residential
Operation
Automatic
Impeller Design
Semi-Open
Motor Housing Material
Cast Iron
Hazardous Location Class
Not Rated
Includes Alarm
No Alarm Included
Power Source
Corded Electric
Frequency
60 Hz
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Material
Ceramic/Nitrile Rubber

Description

The 6EC-CIA-SFS sump pump is designed of heavy duty cast iron construction for durability in the handling of dewatering, water transfer and light effluent applications. Continuous duty rated for sump & light effluent applications, the submersible 6EC Series sump and light effluent pump is for use in basins or lift stations and are suitable for pumping clear water or effluent gray water with up to 1/2" spherical semi-solids. Features & Benefits


•1/3 horsepower PSC motor
•Heavy-duty cast iron construction
•1-1/2" FNPT discharge (38mm)
•140 -degree F (60 -degree C) liquid temperature rating
•Ideal for basement sump and light effluent applications

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
