Shop LITTLE GIANT PUMP

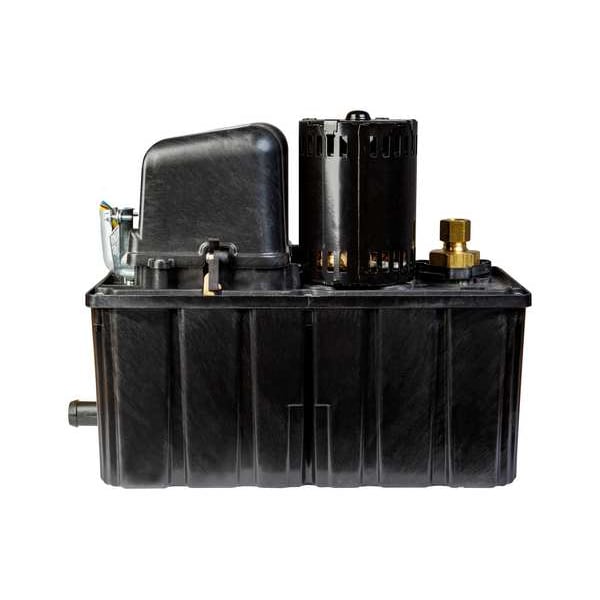

Condensate Pump, 1 gal, 1/8 hp, 115V AC

  • Mfr # 553130101

  • Zoro # G504105109

product price:  $418.99
/ea
Free Shipping & Returns

Key Features

Includes
14 in Lead Wires, Bottom Inlet
Amps
1.9 A
Cord Length
14 ft
Standards
cCSAus
Tank Material
Polypropylene
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
553130101
Zoro #
G504105109
UPC #
-
Country of Origin
Mexico

Dimensions

Cord Length
14 ft
Overall Height
10.2 in
Compatible Discharge Pipe Size
3/8 in
Compatible Intake Pipe Size
1 1/16 in
Overall Width
6 in
Overall Length
12 in
Manufacturer Warranty Length
2 yr
For Inlet Pipe Diameter
1 1/16 in
For Discharge Pipe Diameter
1/2 in

Details

Item
Condensate Removal Pump
Includes
14 in Lead Wires, Bottom Inlet
Amps
1.9 A
Standards
cCSAus
Tank Material
Polypropylene
Application
Condensate Removal
Pump Type
Plenum Rated, Standard
Maximum Flow Rate @ 10 Feet of Head
5.33 gpm
Series
HT-VCL-30-P
Nameplate Voltage
115V AC
Pump Housing Material
Polypropylene
Series Family
HT-VCL
Shut Off Level
1.4 in
Maximum Operating Pressure
13.9 psi
Discharge Connection Style
Barbed
Maximum Flow Rate @ 15 Feet of Head
4.58 gpm
Maximum Flow Rate @ 30 Feet of Head
1 gpm
Maximum Flow Rate @ 1 Feet of Head
6 gpm
Maximum Flow Rate @ 5 Feet of Head
5.83 gpm
Tank Capacity
1 gal
Maximum Flow Rate @ 20 Feet of Head
3.75 gpm
Plenum Rated
Yes
Frequency
60 Hz
Maximum Media Temperature
212 Degrees F
Maximum Flow Rate @ 25 Feet of Head
2.67 gpm
Turn On Level
3.4 in
Maximum Feet of Head
30 ft
Horsepower
1/8 hp
Intake Connection Style
Open
Priming
Self-Priming
Electrical Connection Type
Hardwired
For Media Type
Clear Water
Media Temperature - Maximum
212 Degrees F
Media Temperature - Minimum
33 Degrees F
Full Load Current
1.9 A
Discharge Standard
Barbed
Pump Activation Type
Float Switch
Phase
Single
Inlet Standard
Open
Includes Tubing
No Tubing Included
For HVAC System Duct
Ducted
Pump Technology
Centrifugal
Number of Inlets
1
Pump Casing Material
Polypropylene
UL Rating
UL 2043
Tank Opacity
Solid
Feet of Head - Maximum
32 ft
Product Type
Condensate Removal Pump
Power Source
Corded Electric
Installation
Floor Standing
Operating Pressure - Maximum
13.9 psi
Includes Safety Switch
Safety Switch Included
Power Source - TS Only
Corded Electric

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/8 hp, Includes 14 in Lead Wires, Bottom Inlet, Intake Connection Style Open, Maximum Feet of Head 30 ft, Maximum Flow Rate @ 10 Feet of Head 5.33 gpm, Maximum Flow Rate @ 15 Feet of Head 4.58 gpm, Maximum Flow Rate @ 1 Foot of Head 6 gpm, Maximum Flow Rate @ 20 Feet of Head 3.75 gpm, Maximum Media Temperature 212 Degrees F, Nameplate Voltage 115V AC, Plenum Rated Yes, Pump Type Plenum Rated, Standard, Series HT-VCL-30-P
