  9. Condensate Pump, 1/100 gal, 1/50 hp

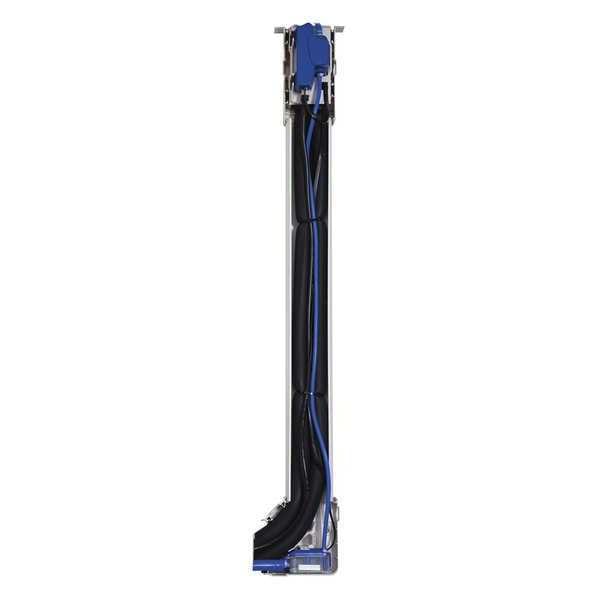

Little Giant Pump Condensate Pump, 1/100 gal, 1/50 hp 553517 - main

Condensate Pump, 1/100 gal, 1/50 hp

  • Mfr # 553517

  • Zoro # G1820765

product price: $214.99
/ea
Free Shipping & Returns

Key Features

Condensate Pumps - Type
Mini-Split
Voltage
110-240VAC
Reservoir Size - Pumps
No Reservoir
Voltage - Pumps
110 to 240V AC
Reservoir Capacity - Pumps
No Reservoir
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
553517
Zoro #
G1820765
UPC #
010121150386
Country of Origin
China

Dimensions

Reservoir Size - Pumps
No Reservoir
Discharge Size - Pumps
1/4 in O. D.
Length
4 1/8 in
Cord Length
4.9 ft
Width
1 7/8 in
Height
2 3/8 in
Manufacturer Warranty Length
2 yr
Compatible Discharge Pipe Size
1/4 in
Compatible Intake Pipe Size
3/16 in
Overall Length
4.13 in
Overall Width
1.88 in
Overall Height
2.38 in
For Inlet Pipe Diameter
1/2 in, 5/8 in, 3/4 in
For HVAC Heating Energy Size
34,000 BTU
For Discharge Pipe Diameter
1/4 in

Details

Condensate Pumps - Type
Mini-Split
Item
Condensate Removal Pump
Voltage
110-240VAC
Voltage - Pumps
110 to 240V AC
Reservoir Capacity - Pumps
No Reservoir
Max. Temp - Pumps
120 Degrees F
Max. Temp.
120 Degrees F
GPH of Water @ 1 Ft. of Head
2.5
GPH of Water @ 30 Ft. of Head
1.01
GPH of Water @ 20 Ft. of Head
1.05
Max. Pressure
26 psi
GPH of Water @ 9 Ft. of Head
1.3
GPH of Water @ 40 Ft. of Head
0
Discharge
1/4"
Includes
Air Conditioner Trim, Inlet Filter, Line Set Kit, Wall Fasteners
Reservoir Capacity
3 oz.
Float Material
Polystyrene
GPH of Water @ 12 Ft. of Head
1.18
Pump Type
Mini-Split
Shut-Off
60 ft.
Max. Head - Pumps
60 ft
Amps
0.18 A
Watts
18 W
GPH of Water @ 5 Ft. of Head
1.7
GPH of Water @ 15 Ft. of Head
1.1
Tank Material
Plastic
Standards
cCSAus, CE
Application
Condensate Removal
Maximum Media Temperature
120 Degrees F
Plenum Rated
No
Discharge Connection Style
Barbed
Nameplate Voltage
110/240V AC
Maximum Flow Rate @ 20 Feet of Head
1.2 gph
Maximum Flow Rate @ 30 Feet of Head
1 gph
Maximum Flow Rate @ 1 Feet of Head
2.5 gph
Frequency
50/60 Hz
For Use With Potable Systems
No
Tank Capacity
0 gal
Pump Activation Type
Electrically Activated
Maximum Flow Rate @ 10 Feet of Head
1.5 gph
Maximum Flow Rate @ 15 Feet of Head
1.3 gph
Intake Connection Style
Open
Maximum Feet of Head
60 ft
Maximum Flow Rate @ 5 Feet of Head
1.8 gph
Maximum Operating Pressure
26 psi
Turn On Level
0.45 in
Compatible Media Type
Water
Maximum Flow Rate @ 25 Feet of Head
1.1 gph
Maximum Ambient Temperature
120 Degrees F
Series Family
EC-1K-DV
Series
EC-1K-DV
Horsepower
1/16 hp
Shut Off Level
0.37 in
Includes Tubing
No Tubing Included
Number of Inlets
1
Installation
Pedestal-Mount
Power Source
Corded Electric
Full Load Current
0.18 A
Media Temperature - Maximum
120 Degrees F
Inlet Standard
Open
For HVAC System Duct
Ductless
Priming
Self-Priming
Discharge Standard
Barbed
For Media Type
Clear Water
Product Type
Mini-Split Condensate Removal Pump
Feet of Head - Maximum
33 ft
Phase
Single
Pump Technology
Centrifugal
Includes Safety Switch
No Safety Switch Included
Electrical Connection Type
Hardwired
Tank Opacity
Translucent
Ambient Temperature - Maximum
120 Degrees F
Operating Pressure - Maximum
26 psi
Media Temperature - Minimum
33 Degrees F

Description

Condensate Removal Pump, Discharge Connection Style Barbed, Horsepower 1/16 hp, Includes Air Conditioner Trim, Inlet Filter, Line Set Kit, Wall Fasteners, Intake Connection Style Open, Maximum Feet of Head 60 ft, Maximum Flow Rate @ 10 Feet of Head 1.5 gph, Maximum Flow Rate @ 15 Feet of Head 1.3 gph, Maximum Flow Rate @ 1 Foot of Head 2.5 gph, Maximum Flow Rate @ 20 Feet of Head 1.2 gph, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 110/240V AC, Plenum Rated No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
