This item is Discontinued.

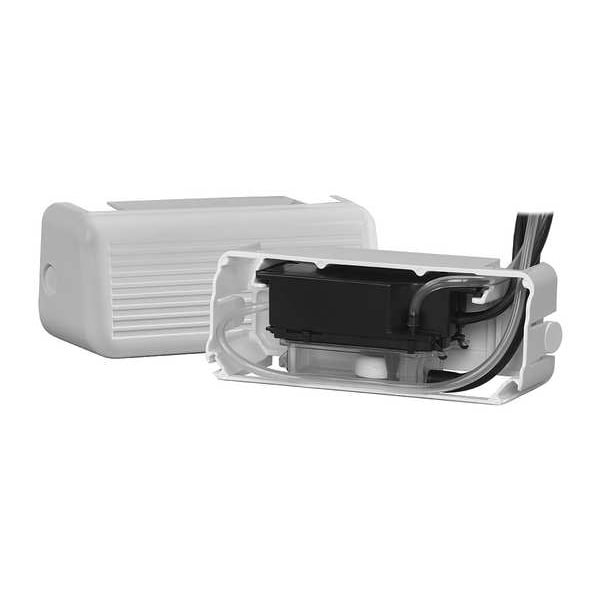

Little Giant Pump Condensate Pump, Mini, 230V, .1A, 15.2 PSI EC-OP-K

Condensate Pump, Mini, 230V, .1A, 15.2 PSI (Discontinued)

  • Mfr # EC-OP-K
  • Zoro # G4232593
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EC-OP-K
Zoro #
G4232593
UPC #
010121138346
Country of Origin
United States

Dimensions

Reservoir Size - Pumps
No Reservoir
Discharge Size - Pumps
5/32 in Barb
Width
3 7/32 in
Height
3 1/2 in
Length
8 1/4 in
Compatible Intake Pipe Size
5/16 in
Overall Length
8.43 in
Overall Height
3.5 in
Compatible Discharge Pipe Size
3/16 in
Overall Width
3.22 in

Details

Condensate Pumps - Type
Mini-Split
Item
Condensate Removal Pump
Voltage
230
Voltage - Pumps
230V AC
Reservoir Capacity - Pumps
No Reservoir
Max. Temp - Pumps
120 Degrees F
GPH of Water @ 15 Ft. of Head
1.7
Float Material
Polystyrene
Standards
cCSAus
Watts
20 W
GPH of Water @ 1 Ft. of Head
3.7
Max. Pressure
15.2 psi
GPH of Water @ 9 Ft. of Head
2.5
GPH of Water @ 12 Ft. of Head
2
Shut-Off
29 ft.
Amps
0.1 A
GPH of Water @ 5 Ft. of Head
3
Pump Type
Mini-Split
Max. Head - Pumps
29 ft
GPH of Water @ 20 Ft. of Head
1.2
Reservoir Capacity
No Reservoir
Max. Temp.
120 Degrees F
Includes
Clear Reservoir for Visual Inspection of Water Level, Filter, Float, Mounting Bracket, Tubing, Universal Drain Hose Adaptor
Discharge
5/32" Barb
Maximum Ambient Temperature
120 Degrees F
Maximum Flow Rate @ 10 Feet of Head
3.7 gpm
Maximum Feet of Head
29 ft
Maximum Flow Rate @ 20 Feet of Head
1.2 gpm
Frequency
50/60 Hz
Maximum Flow Rate @ 50 Feet of Head
3 gpm
Maximum Media Temperature
120 Degrees F
Maximum Flow Rate @ 1 Feet of Head
3.7 gpm
For Use With Potable Systems
No
Maximum Operating Pressure
15.2 psi
Horsepower
1/40 hp
Nameplate Voltage
230V AC
Maximum Flow Rate @ 5 Feet of Head
3 gpm
Maximum Flow Rate @ 15 Feet of Head
1.7 gpm
Discharge Connection
3/16 in
Intake Connection
5/16 in

Description

Condensate Removal Pump, Horsepower 1/40 hp, Includes Clear Reservoir for Visual Inspection of Water Level, Filter, Float, Mounting Bracket, Universal Drain Hose Adaptor, Maximum Feet of Head 29 ft, Maximum Flow Rate @ 15 Feet of Head 1.7 gpm, Maximum Flow Rate @ 1 Foot of Head 3.7 gpm, Maximum Flow Rate @ 20 Feet of Head 1.2 gpm, Maximum Media Temperature 120 Degrees F, Nameplate Voltage 230V AC, Pump Type Mini-Split, Maximum Flow Rate @ 5 Feet of Head 3 gpm, Amps 0.1 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
