Shop LITTLE GIANT PUMP

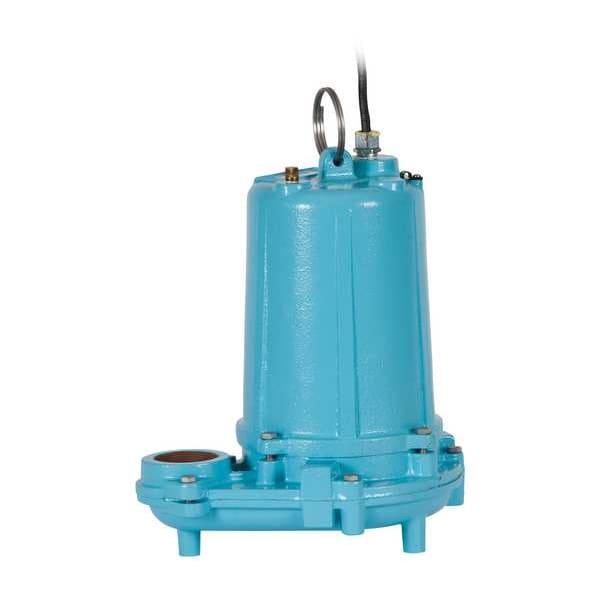

EffluentPump, 20ft, 11.6A, 0.5hp, 115VAC

  • Mfr # 620231

  • Zoro # G601991995

product price:  $682.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1/2
Impeller Material
Cast Iron
Amps
11.6 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
620231
Zoro #
G601991995
UPC #
0010121121607
Country of Origin
Mexico

Dimensions

Cord Length
20 ft
Overall Height
13 3/4 in
Body Dia.
9 3/8 in
Max. Diameter Solids
3/4 in
Min. Sump Pit Dia.
18 in
Width at Widest Point
12 1/4 in
Discharge Dia.
2 in
Manufacturers Warranty Length
3 yr
Solids Diameter - Maximum
3/4 in
Sump Pit Diameter - Minimum
18 in
Discharge Diameter
2 in
Body Diameter
9 3/8 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Cast Iron
Amps
11.6 A
Body Material
Cast Iron
Max. Head
42 ft
Switch Actuation
No Switch Included
Rated Voltage
115V AC
Phase
Single
Switch Electrical Connection
No Switch Included
Discharge Gender
Female
RPM
3,450 RPM
Max. Liquid Temp.
120 Degrees F
Agency Compliance
cCSAus Listed
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
64 gpm
Discharge
2 in FNPT
Flow Rate @ 10 Ft. of Head
90 gpm
Series
WS50M-20
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 15 Ft. of Head
80 gpm
Duty Cycle
Continuous, Intermittent
Hz
60 Hz
Power Source
Corded Electric
Flow Rate @ 20 ft of Head
64 gpm
Flow Rate @ 10 ft of Head
90 gpm
Liquid Temperature - Maximum
120 Degrees F
Horsepower
1/2 hp
Feet of Head - Maximum
42 ft
Current
11.6 A
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Requires Control Panel
No Control Panel Required
Motor Housing Material
Cast Iron
Rotation Speed - Maximum
3,450 RPM
Standards
cCSAus Listed
Volute Material
Cast Iron
Shaft Seal Type
Single Mechanical
For Media Type
Effluent Water, Grey Water
Power Source - TS Only
Corded Electric

Description

Effluent Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11.6 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 90 gpm, Flow Rate @ 15 Ft. of Head 80 gpm, Flow Rate @ 20 Ft. of Head 64 gpm, Max. Head 42 ft, Min. Sump Pit Dia. 18 in, Body Dia. 9 3/8 in, Width at Widest Point 12 1/4 in, Overall Height 13 3/4 in
