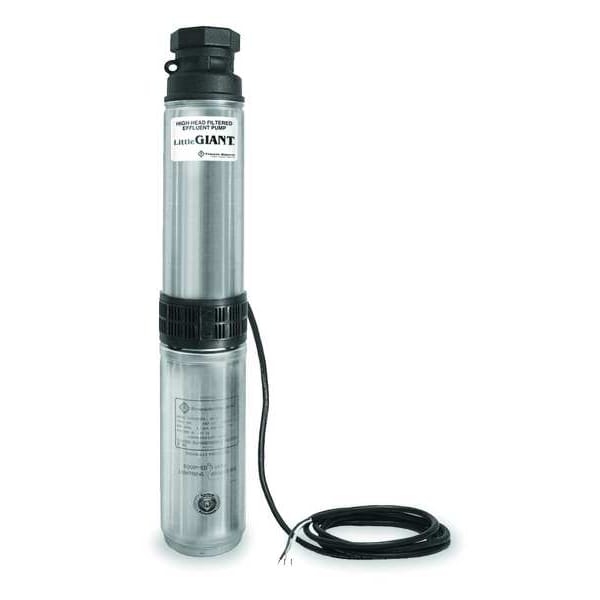

Little Giant Pump High Head Effluent Pump, 1/2hp, 250ft. Max 558221 - main

High Head Effluent Pump, 1/2hp, 250ft. Max

  • Mfr # 558221

  • Zoro # G0853657

product price: $501.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
10 ft
HP
1/2
Impeller Material
Celcon
Amps
10 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
558221
Zoro #
G0853657
UPC #
010121120884
Country of Origin
United States

Dimensions

Cord Length
10 ft
Height
31"
Max. Diameter Solids
Clear Water
Diameter
4"
Cord Length - Pumps
10 ft.
Discharge Dia.
1 1/4 in
Body Dia.
4 in
Overall Height
31 in
Body Diameter
4 in
Solids Diameter - Maximum
0 in
Discharge Diameter
1 1/4 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Celcon
Amps
10 A
Body Material
Stainless Steel
Max. Head
250 ft
Switch Actuation
No Switch Included
GPM of Water @ 40 Ft. of Head
15
GPM of Water @ 30 Ft. of Head
16
Input Phase AC
1
Motor Type
Split Phase
Base Material
Stainless Steel
GPM of Water @ 90 Ft. of Head
13
Bearing Type
Sleeve
Impeller Material - Pumps
Celcon
Switch Type - Pumps
No Switch Included
Voltage - Pumps
120VAC
GPM of Water @ 80 Ft. of Head
13
GPM of Water @ 25 Ft. of Head
16
Switch Type
None
GPM of Water @ 60 Ft. of Head
14
Item - Effluent Pumps
High Head Filtered Submersible Effluent Pump
Shaft Seal Material - Pumps
Ceramic
Motor RPM
3450
Pump Body Material
Stainless Steel
Thermal Protection
Thermal Protection
Housing Material
Stainless Steel
GPM of Water @ 150 Ft. of Head
11
Duty
Continuous
Pump HP
1/2
GPM of Water @ 70 Ft. of Head
14
Max. Head - Pumps
250 ft.
Amps - Pumps
10.00
GPM of Water @ 100 Ft. of Head
13
GPM of Water @ 50 Ft. of Head
15
GPM of Water @ 200 Ft. of Head
8
Discharge NPT
1-1/4" F
Agency Compliance
cCSAus
Voltage
115V
Shaft Seal
Ceramic
Phase
Single
Max. Liquid Temp.
104 Degrees F
Duty Cycle
Continuous
Rated Voltage
115V AC
Flow Rate @ 60 Ft. of Head
14 gpm
Flow Rate @ 40 Ft. of Head
15 gpm
Discharge
1 1/4 in FNPT
Switch Electrical Connection
No Switch Included
Flow Rate @ 80 Ft. of Head
13 gpm
Flow Rate @ 100 Ft. of Head
13 gpm
Discharge Standard
NPT
RPM
3,450 RPM
Alarm Included
No
Flow Rate @ 150 Ft. of Head
10 gpm
Discharge Gender
Female
Liquid Temperature - Maximum
104 Degrees F
Feet of Head - Maximum
250 ft
Shaft Seal Material
Ceramic
Motor Housing Material
Stainless Steel
Rotation Speed - Maximum
3,450 RPM
Includes Alarm
No Alarm Included
Horsepower
1/2 hp
Requires Control Panel
No Control Panel Required
For Media Type
Clear Water, Effluent Water, Grey Water
Power Source
Corded Electric
Current
10.0 A
Standards
cCSAus Listed

Description

Effluent Pump, HP 1/2, Rated Voltage 115V AC, Phase - Pumps 1, Amps 10 A, Body Material Stainless Steel, Impeller Material Celcon, Shaft Seal Material - Pumps Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 40 Ft. of Head 15 gpm, Flow Rate @ 60 Ft. of Head 14 gpm, Flow Rate @ 80 Ft. of Head 13 gpm, Flow Rate @ 100 Ft. of Head 13 gpm, Flow Rate @ 150 Ft. of Head 10 gpm, Max. Head 250 ft, Body Dia. 4 in, Overall Height 31 in
