This item is Discontinued.

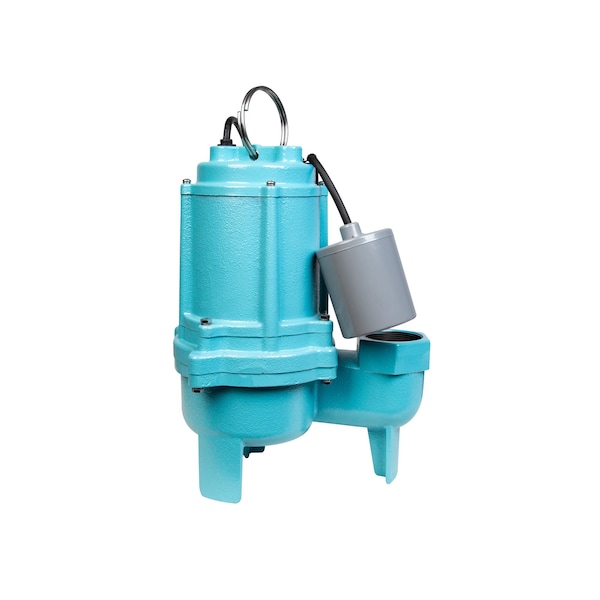

Little Giant Pump Little Giant Sewage Pump, 9SC-CIA-RF 509931

Little Giant Sewage Pump, 9SC-CIA-RF (Discontinued)

  • Mfr # 509931
  • Zoro # G701109177
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
509931
Zoro #
G701109177
UPC #
-
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Cord Length
20 ft
Discharge Dia.
2 in
Manufacturers Warranty Length
3 yr
Body Dia.
8 3/5 in
Overall Height
13 5/8 in
Width at Widest Point
10 3/8 in
Min. Sump Pit Dia.
18 in
Body Diameter
8 5/8 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
2 in
Discharge Diameter
2 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
80 gpm
Max. Head
20 ft
Impeller Material
Thermoplastic Elastomer
Duty Cycle
Continuous
Discharge Standard
NPT
RPM
3,600 RPM
Thermal Protection
Yes
Hz
60 Hz
Switch Electrical Connection
Piggyback
Rated Voltage
115V AC
Discharge Gender
Female
On Point
16 in
Flow Rate @ 15 Ft. of Head
60 gpm
Motor Type
Permanent Split Capacitor
Gauge/Conductor
18/3
Discharge
2 in FNPT
Amps
8 A
Max. Liquid Temp.
140 Degrees F
Agency Compliance
cCSAus
Phase
Single
Shaft Seal Material - Pumps
Nitrile with Carbon and CeramicFaces
Off Point
9 in
Item
Sewage Pump
Standards
cCSAus
Feet of Head - Maximum
20 ft
Frequency
60 Hz
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Horsepower
2/5 hp
Flow Rate @ 10 ft of Head
80 gpm
Rotation Speed - Maximum
3,600 RPM
Liquid Temperature - Maximum
140 Degrees F
Current
8 A

Description

The 9SC-CIA Series sewage pump is an automatic submersible sewage pump. It is a steady performer and effectively tackles sewage and effluent wastewater transfer and dewatering applications. It is thermally protected and rated for continous duty.


  • •Cast iron construction
  • •Automatic piggyback mechanical float switch
  • •Up to 2-inch solids-handling capability
  • •Energy-saving low amp draw
  • •4/10 hp, 2-inch FNPT discharge, 60 Hz, 870 W, 115 V, 100 gpm at 5-foot head, shut-off at 20-foot, 20-foot power cord

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
