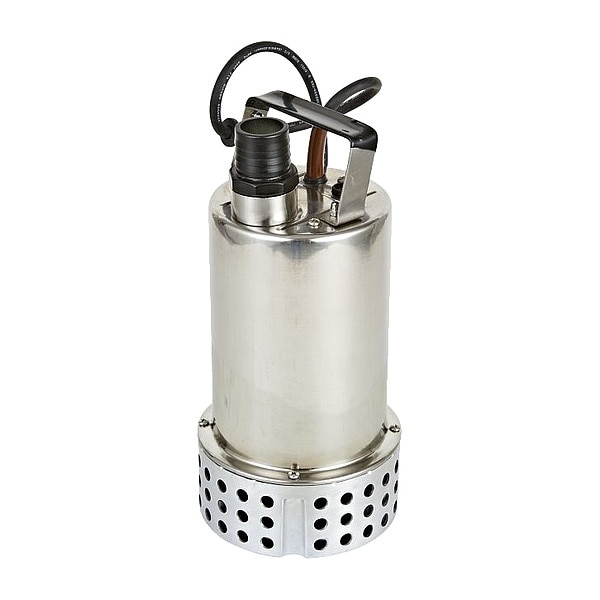

Main Drain Pump, 40ft., 3/4hp, Screened

  • Mfr # 577306

  • Zoro # G209197218


product price: $368.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Cord Length
25 ft
Includes
Hose Barb Adapter
Impeller Material
304 Stainless Steel
Features
Rated for Continuous Duty which Allows for a Wide Range of Applications and Uses
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
577306
Zoro #
G209197218
UPC #
0029753444992
Country of Origin
China

Dimensions

Cord Length
25 ft
Manufacturer Warranty Length
1 yr
Overall Length
5.9 in
Compatible Intake Pipe Size
1 3/10 in
Compatible Discharge Pipe Size
1 3/10 in
Overall Height
12.2 in
Overall Width
5.9 in

Details

Item
Main Drain Pump
Phase
Single
Includes
Hose Barb Adapter
Impeller Material
304 Stainless Steel
Features
Rated for Continuous Duty which Allows for a Wide Range of Applications and Uses
Flow Rate @ 40 ft of Head (Maximum)
580 gph
Maximum Feet of Head
40 ft
Maximum Flow Rate
71 gpm
Flow Rate @ 20 ft of Head (Maximum)
2,890 gph
Horsepower
3/4 hp
Shut Off Pressure (Maximum)
42 ft of head
Flow Rate @ 15 ft of Head (Maximum)
3,290 gph
Suction Lift (Maximum)
40 ft
Pumping Application
Water Removal
Duty Cycle
Continuous
Seal Material
FKM
Pump Type
Pool Pump
Discharge Type
NPT
Flow Rate @ 30 ft of Head (Maximum)
1,880 gph
Intake Type
Screened
Frequency
60 Hz
Flow Rate @ 5 ft of Head (Maximum)
4,020 gph
Seal Type
Triple Lip
Standards
cCSAus Listed
Flow Rate @ 10 ft of Head (Maximum)
3,670 gph
Electrical Connection Type
Hardwired
Submersible
Yes
Nameplate Voltage
115 VAC

Description

Main Drain Pump, Phase Single, Horsepower 3/4 hp, Nameplate Voltage 115 VAC, Maximum Feet of Head 40 ft, Flow Rate @ 20 ft of Head (Maximum) 2,890 gph, Flow Rate @ 30 ft of Head (Maximum) 1,880 gph, Flow Rate @ 40 ft of Head (Maximum) 580 gph, Flow Rate @ 50 ft of Head (Maximum) Not Applicable, Flow Rate @ 70 ft of Head (Maximum) Not Applicable, Flow Rate @ 90 ft of Head (Maximum) Not Applicable, Flow Rate @ 100 ft of Head (Maximum) Not Applicable, Maximum Flow Rate 71 gpm
