This item is Discontinued.

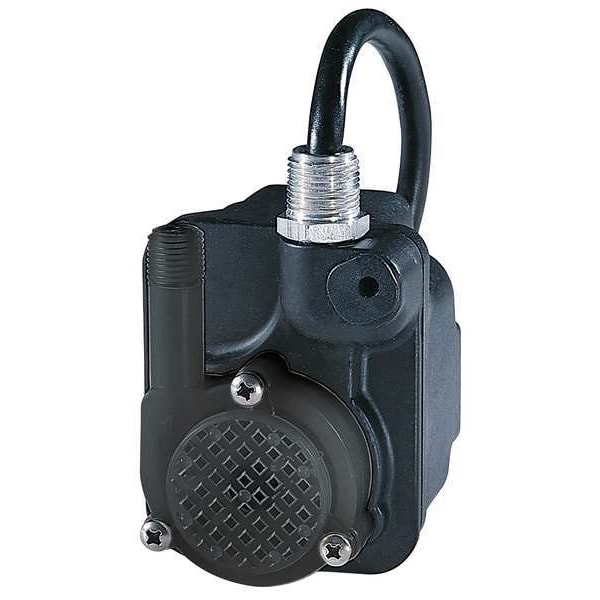

Little Giant Pump Parts Washer Pump 1-EAYS

Parts Washer Pump (Discontinued)

  • Mfr # 1-EAYS
  • Zoro # G7071933
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-EAYS
Zoro #
G7071933
UPC #
010121180208
Country of Origin
Mexico

Dimensions

Width (In.)
2 3/4 in
Compatible Discharge Pipe Size
1/4 in
Manufacturer Warranty Length
1 yr

Details

Item
Parts Washer Pump
HP
1/125 hp
Amps AC
0.6 A
Capacity GPH 1Foot
170
Capacity GPH 3 Feet
140 gph
Capacity GPH 5 Feet
100 gph
PSI
3.1
Shut Off
7
Compatible with Media Type
Metal Parts Cleaning Solvents
Motor Sealing
Epoxy Encapsulated
Duty Cycle
Continuous
Frequency
60 Hz
Flow Rate @ 5 ft of Head (Maximum)
1.66 gpm
Submersible
Yes
Maximum Flow Rate
2.83 gpm
Intake Type
NPT
Horsepower
1/125 hp
Minimum Flow Rate
2.33 gpm
System Pressure (Maximum)
3 psi
Discharge Type
NPT
Flow Rate @ 1 ft of Head (Maximum)
2.83 gpm
Maximum Feet of Head
7 ft of head
Pump Housing Material
Thermoplastic
Maximum Media Temperature
120 Degrees F

Description

Parts Washer Pump, Motor Sealing Epoxy Encapsulated, Horsepower 1/125 hp, Maximum Flow Rate 2.83 gpm, Flow Rate @ 1 ft of Head (Maximum) 2.83 gpm, Flow Rate @ 5 ft of Head (Maximum) 1.66 gpm, Maximum Feet of Head 7 ft of head, Compatible Discharge Pipe Size 1/4 in, Intake Type NPT, Discharge Type NPT, Compatible with Media Type Metal Parts Cleaning Solvents, Cord Length 6 ft, Pump Housing Material Thermoplastic, Submersible Yes, Duty Cycle Continuous
