  9. Pond Pump, 3/16hp, 120V AC, Plastic Housing

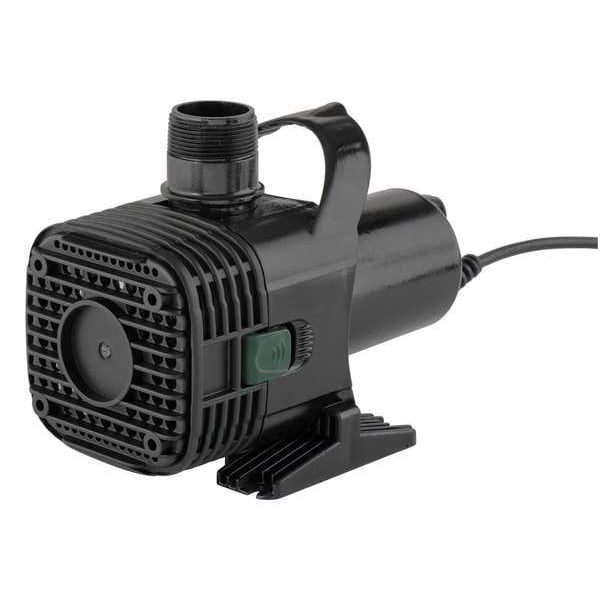

Little Giant Pump Pond Pump, 3/16hp, 120V AC, Plastic Housing 566725 - main

Pond Pump, 3/16hp, 120V AC, Plastic Housing

  • Mfr # 566725

  • Zoro # G5297266

product price: $267.99
/ea
Free Shipping & Returns

Key Features

HP
3/16 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
2,095
Amps
1.25 A
Max. Head
14.9 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
566725
Zoro #
G5297266
UPC #
010121143616
Country of Origin
China

Dimensions

Length
10 in
Height
7 9/16 in
Cord Length
20 ft
Max. Dia. Solids
1/4 in
Width
5 11/16 in
Solid Diameter (Maximum)
0.25 in
Overall Height
7.5 in
Overall Width
5.7 in
Manufacturer Warranty Length
3 yr
Compatible Intake Pipe Size
1 1/2 in
Compatible Discharge Pipe Size
1 1/2 in
Overall Length
9.9 in

Details

Item
Pond Pump
HP
3/16 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
2,095
Amps
1.25 A
Max. Head
14.9 ft
Hz
60
Duty
Continuous
GPH of Water @ 10 Ft. of Head
961
Features
Modular Screen Ability, Rope and Cable Loop for Deep Installation Retrieval
Impeller Material
Polypropylene
GPH of Water @ 1 Ft. of Head
2,706
GPH of Water @ 20 Ft. of Head
96
Installation Position
Vertical or Horizontal
Motor RPM
3,450 RPM
Housing Material
ABS
Outlet
1.5 in MNPT
Inlet
Screened
Motor Type
PSC
Full Load Amps
1.25 A
Agency Compliance
cULus
Cord Type
SJTW
Overload Protection
yes
Includes
Pre Filter
Standards
cULus Listed
Maximum Feet of Head
14.9 ft
Nameplate Voltage
120V AC
Flow Rate @ 10 ft of Head (Maximum)
16 gpm
Maximum RPM
3,450 RPM
Frequency
60 Hz
Maximum Flow Rate
46.2 gpm
Pump Type
Water Garden Pump
Intake Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
0 gpm
Series
F
Horsepower
3/16 hp
Minimum Flow Rate
16 gpm
Flow Rate @ 1 ft of Head (Maximum)
45 gpm
Submersible
Yes
Flow Rate @ 5 ft of Head (Maximum)
34.9 gpm
Discharge Type
NPT
Feet of Head (Minimum)
1 ft
Thermal Overload Protection
Yes
Duty Cycle
Continuous
Electrical Connection Type
Plug-In
Pump Housing Material
Plastic

Description

Pond Pump, Pump Housing Material Plastic, Horsepower 3/16 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 14.9 ft, Flow Rate @ 5 ft of Head (Maximum) 34.9 gpm, Flow Rate @ 10 ft of Head (Maximum) 16 gpm, Flow Rate @ 15 ft of Head (Maximum) 0 gpm, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/2 in, Intake Type NPT, Discharge Type NPT, Cord Length 20 ft, Pump Type Water Garden Pump, Submersible Yes, Series F, Amps 1.25 A, Duty Cycle Continuous

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
