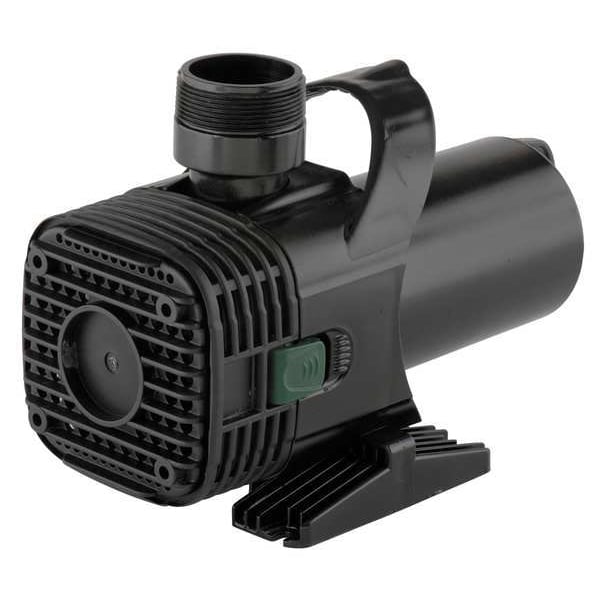

Pond Pump, 9/32hp, 120V AC, Plastic Housing

  • Mfr # 566726

  • Zoro # G8521353


product price: $306.99
/ea
Free Shipping & Returns

Key Features

HP
9/32 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
2,897
Amps
1.82 A
Max. Head
18.8 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
566726
Zoro #
G8521353
UPC #
010121143623
Country of Origin
China

Dimensions

Length
13 1/4 in
Height
8 in
Cord Length
20 ft
Width
6 1/8 in
Max. Dia. Solids
1/4 in
Compatible Intake Pipe Size
2 in
Overall Width
6.1 in
Overall Length
13.3 in
Solid Diameter (Maximum)
0.25 in
Overall Height
8 in
Compatible Discharge Pipe Size
2 in
Manufacturer Warranty Length
3 yr

Details

Item
Pond Pump
HP
9/32 hp
Voltage
120V AC
GPH of Water @ 5 Ft. of Head
2,897
Amps
1.82 A
Max. Head
18.8 ft
Hz
60
Duty
Continuous
Motor RPM
3,450 RPM
Motor Type
PSC
GPH of Water @ 1 Ft. of Head
3,850
Agency Compliance
cULus
Full Load Amps
1.82 A
Housing Material
ABS
Cord Type
SJTW
Inlet
Screened
Features
Modular Screen Ability, Rope and Cable Loop for Deep Installation Retrieval
Impeller Material
Polypropylene
Outlet
2 in MNPT
Overload Protection
yes
GPH of Water @ 10 Ft. of Head
1,922
Installation Position
Vertical or Horizontal
Standards
cULus Listed
Includes
Pre Filter
Intake Type
NPT
Flow Rate @ 5 ft of Head (Maximum)
48.3 gpm
Duty Cycle
Continuous
Flow Rate @ 15 ft of Head (Maximum)
12.1 gpm
Horsepower
9/32 hp
Maximum Flow Rate
67.7 gpm
Minimum Flow Rate
16 gpm
Pump Type
Water Garden Pump
Thermal Overload Protection
Yes
Frequency
60 Hz
Maximum RPM
3,450 RPM
Electrical Connection Type
Plug-In
Discharge Type
NPT
Submersible
Yes
Maximum Feet of Head
18.8 ft
Flow Rate @ 1 ft of Head (Maximum)
64.1 gpm
Pump Housing Material
Plastic
Feet of Head (Minimum)
1 ft
Flow Rate @ 10 ft of Head (Maximum)
32 gpm
Series
F
Nameplate Voltage
120V AC

Description

Pond Pump, Pump Housing Material Plastic, Horsepower 9/32 hp, Nameplate Voltage 120V AC, Maximum Feet of Head 18.8 ft, Flow Rate @ 5 ft of Head (Maximum) 48.3 gpm, Flow Rate @ 10 ft of Head (Maximum) 32 gpm, Flow Rate @ 15 ft of Head (Maximum) 12.1 gpm, Compatible Intake Pipe Size 2 in, Compatible Discharge Pipe Size 2 in, Intake Type NPT, Discharge Type NPT, Cord Length 20 ft, Pump Type Water Garden Pump, Submersible Yes, Series F, Amps 1.82 A, Duty Cycle Continuous
