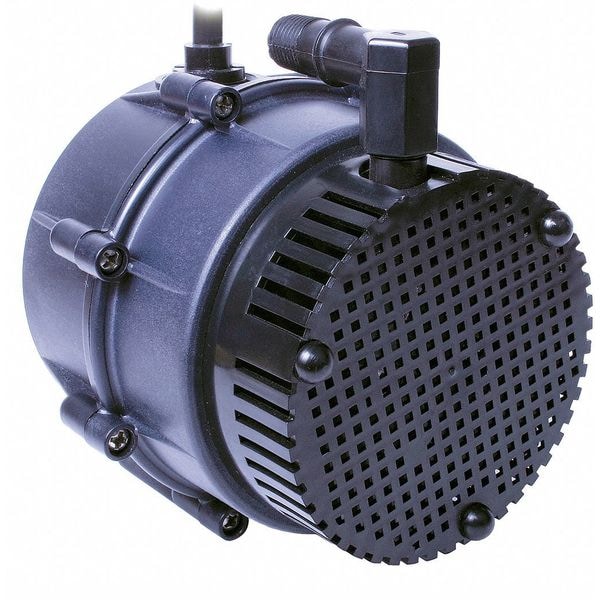

Shop LITTLE GIANT PUMP

Pump 230V 1/40 HP

  • Mfr # 527016

  • Zoro # G5398687

product price:  $178.99
/ea
Free Shipping & Returns

Key Features

Max. Liquid Temp.
120 Degrees F
Application
Submerged
Min. GPM @ Head
3 gpm @ 9 ft
Max. Specific Gravity
1.1
Impeller Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
527016
Zoro #
G5398687
UPC #
010121270039
Country of Origin
Multiple

Dimensions

Height
4 9/16 in
Length
4 1/4 in
Width
4 1/4 in
Manufacturers Warranty Length
1 yr
Overall Width
5 in
Overall Height
4.6 in
Overall Length
5 in
Cord Length
12 ft
Discharge Diameter
1/4 in

Details

Max. Liquid Temp.
120 Degrees F
Application
Submerged
Min. GPM @ Head
3 gpm @ 9 ft
Max. Specific Gravity
1.1
Impeller Material
Nylon
HP
1/40 hp
Bearing Type
Sleeve
Hz
50/60
GPM of Water @ 3 Ft. of Head
5
GPM of Water @ 7 Ft. of Head
3.8
Max. GPM @ Head
120 gpm @ 2 ft
Phase
Single
Port Rotation
CW
Max. Fluid Viscosity
100 SUS
Seal Type
Lip
GPM of Water @ 1 Ft. of Head
5.4
Housing Material
Nylon
Screw Material
Stainless Steel
GPM of Water @ 5 Ft. of Head
4.5
Cord
6 ft
Shaft Material
Stainless Steel
Duty
Continuous
Voltage
230
Seal Material
Viton
Amps
0.9
Impeller Type
Open
Includes
6 ft Cable
Wetted Materials
Nitrile, Nylon, Polyethylene, PVC, SSTL, Viton
GPM of Water @ 9 Ft. of Head
3
GPM of Water @ 10 Ft. of Head
2.1
Volute Material
Nylon
GPM of Water @ 2 Ft. of Head
120
Drain Plug
No
Motor Type
Shaded Pole
Inlet
Screened
Max. Head
12 3/10 ft
Outlet
1/4 in (M)NPT
Item
Centrifugal Pump
Standards
CSA/UL
Ambient Temperature - Minimum
30 Degrees F
Motor Sealing
Oil-Filled
Media Temperature - Minimum
30 Degrees F
Chemical Compatibility
Machine Oil, Water
Media Temperature - Maximum
120 Degrees F
Pump Design
Submersible
Case Pressure - Maximum
5.33 psi
Number of Stages
1
Flow Rate (Minimum)
1 gpm
Flow Rate @ 1 ft of Head (Maximum)
325 gph
Horsepower
1/40 hp
Feet of Head (Maximum)
12.3 ft
Inlet Standard
Screened
Full Load Current
.9A
Flow Rate @ 5 ft of Head (Maximum)
270 gph
Nameplate Voltage
230V AC
Frequency
60 Hz
Pump Housing Material
Glass Filled Nylon
Shaft Seal Material
FKM
Shut Off Pressure - Maximum
5.3 psi
Suction Lift (Maximum)
0 ft
Drive Coupling Type
No Coupling
Flow Rate @ 10 ft of Head (Maximum)
130 gph
Ambient Temperature - Maximum
120 Degrees F
Wetted Material
Buna-N, Nylon, Polyethylene, PVC, Stainless Steel, FKM
Pumping Application
Coolant Recirculating, Liquid Transfer
Flow Rate (Maximum)
325 gph

Description

Centrifugal Pump, Pump Housing Material Glass Filled Nylon, Horsepower 1/40 hp, Nameplate Voltage 230V AC, Flow Rate @ 1 ft of Head (Maximum) 325 gph, Flow Rate @ 5 ft of Head (Maximum) 270 gph, Flow Rate @ 10 ft of Head (Maximum) 130 gph, Cord Length 12 ft, Motor Sealing Oil-Filled, Amps 1.7, Frequency 60 Hz, Impeller Design Open, Impeller Material Nylon, Includes 6 ft Cable
