Little Giant Pump Pump, 4-1/2 In. L, 3-3/4 In. W, 3-3/4 In. H 517100001 - main
Shop LITTLE GIANT PUMP

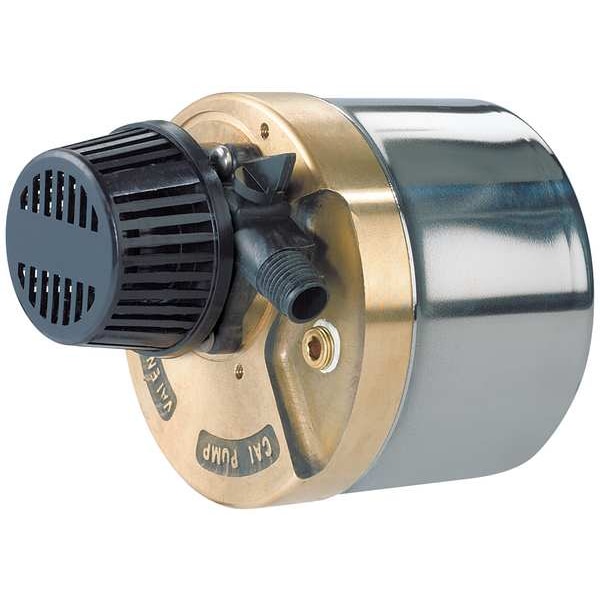

Pump, 4-1/2 In. L, 3-3/4 In. W, 3-3/4 In. H

  • Mfr # 517100001

  • Zoro # G1423992

product price:  $298.99
/ea
Free Shipping & Returns

Key Features

HP
1/30 hp
Voltage
115V
GPH of Water @ 5 Ft. of Head
255
Amps
1.2 A
Max. Head
13.5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
517100001
Zoro #
G1423992
UPC #
010121137769
Country of Origin
Multiple

Dimensions

Length
4 1/2 in
Height
3 3/4 in
Cord Length
20 ft
Width
3 3/4 in
Overall Width
4 in
Manufacturer Warranty Length
2 yr
Compatible Discharge Pipe Size
1/4 in
Compatible Intake Pipe Size
1/2 in
Overall Height
4 in
Overall Length
4.5 in

Details

Item
Marine Centrifugal Pump
HP
1/30 hp
Voltage
115V
GPH of Water @ 5 Ft. of Head
255
Amps
1.2 A
Max. Head
13.5 ft
Hz
60
Duty
Continuous
GPH of Water @ 10 Ft. of Head
163
GPH of Water @ 1 Ft. of Head
285
Agency Compliance
UL/CSA
Motor RPM
3,450 RPM
Impeller Material
Nylon
Full Load Amps
1.5 A
Overload Protection
yes
Housing Material
Nylon
Motor Type
Shaded Pole
Includes
Screen
Seal Material
Viton
Inlet Type
Threaded
Cord Type
SJTOW
Inlet
Threaded
Standards
CSA Certified, UL Listed
Maximum RPM
3,450 RPM
Horsepower
1/40 hp
Flow Rate @ 1 ft of Head (Maximum)
290 gph
Seal Type
Oil Seal
Maximum Flow Rate
360 gph
Nameplate Voltage
115V AC
Discharge Type
NPT
Maximum Media Temperature
120 Degrees F
Pumping Application
Air Conditioners, Machine Tool Coolants and Mild Acids, Water Displays
Electrical Connection Type
Plug-In
Duty Cycle
Continuous
Flow Rate @ 5 ft of Head (Maximum)
255 gph
Frequency
60 Hz
Thermal Overload Protection
Yes
Series
S
Flow Rate @ 10 ft of Head (Maximum)
163 gph
Intake Type
NPT
Maximum Feet of Head
13.5 ft
Pump Housing Material
Bronze
Compatible with Media Type
Freshwater, Saltwater
Pump Type
Submersible Centrifugal

Description

Marine Centrifugal Pump, Pump Housing Material Bronze, Horsepower 1/40 hp, Nameplate Voltage 115V AC, Maximum Feet of Head 13.5 ft, Flow Rate @ 5 ft of Head (Maximum) 255 gph, Flow Rate @ 10 ft of Head (Maximum) 163 gph, Flow Rate @ 15 ft of Head (Maximum) Not Applicable, Compatible Intake Pipe Size 1/2 in, Compatible Discharge Pipe Size 1/4 in, Intake Type NPT, Discharge Type NPT, Cord Length 20 ft, Pump Type Submersible Centrifugal, Series S, Amps 1.2 A
