Shop LITTLE GIANT PUMP

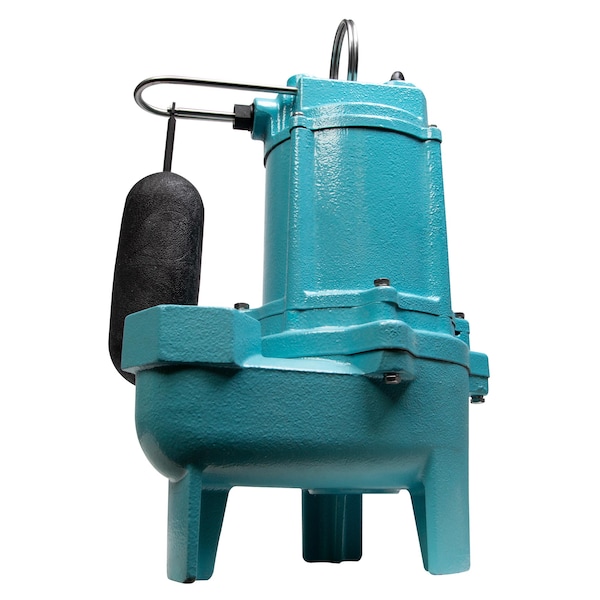

Sewage Ejector Pump, 20ft, 0.4hp, 115V AC

  • Mfr # 509411

  • Zoro # G801109145

product price:
$
620.99
/ea
Free Shipping & Returns

Key Features

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
80 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
509411
Zoro #
G801109145
UPC #
-
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Body Dia.
8 3/5 in
Width at Widest Point
10 3/4 in
Discharge Dia.
2 in
Manufacturers Warranty Length
3 yr
Min. Sump Pit Dia.
18 in
Cord Length
20 ft
Overall Height
14 3/8 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
8 5/8 in
Solids Diameter - Maximum
2 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
80 gpm
Max. Head
20 ft
Impeller Material
Thermoplastic Elastomer
Discharge
2 in FNPT
Gauge/Conductor
18/3
Motor Type
Permanent Split Capacitor
Hz
60 Hz
On Point
10 in
Item
Sewage Ejector Pump
Discharge Gender
Female
Discharge Standard
NPT
Thermal Protection
Auto
RPM
3,600 RPM
Off Point
5 in
Flow Rate @ 15 Ft. of Head
60 gpm
Agency Compliance
cCSAus
Shaft Seal Material - Pumps
Nitrile with Carbon and CeramicFaces
Phase
Single
Switch Electrical Connection
Integral
Amps
8 A
Max. Liquid Temp.
140 Degrees F
Duty Cycle
Continuous
Rated Voltage
115V AC
Standards
cCSAus
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Liquid Temperature - Maximum
140 Degrees F
Horsepower
2/5 hp
Frequency
60 Hz
Feet of Head - Maximum
20 ft
Current
8 A
Rotation Speed - Maximum
3,600 RPM
Flow Rate @ 10 ft of Head
80 gpm
Motor Housing Material
Cast Iron
Power Source
Corded Electric
Impeller Design
Vortex
Motor Design
Permanent Split Capacitor
For Media Type
Sewage Water
Requires Control Panel
No Control Panel Required
Volute Material
Cast Iron
Discharge Orientation
Vertical
Shaft Seal Type
Single Mechanical
Installation
Submersible
Application
Dewatering, Transfer, Waste Removal
Series
9SC-CIA-SFS
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 8 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Thermoplastic Elastomer, Shaft Seal Material - Pumps Nitrile with Carbon and CeramicFaces, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 10 in, Off Point 5 in, Flow Rate @ 10 Ft. of Head 80 gpm, Flow Rate @ 15 Ft. of Head 60 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 18 in
