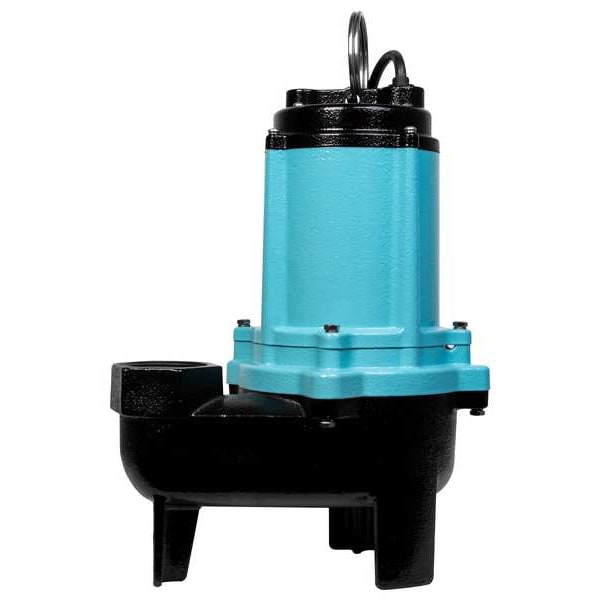

Sewage Ejector Pump, 20ft, 0.5hp, 115V AC

  • Mfr # 511432

  • Zoro # G901977279


product price:  $511.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron, Thermoplastic
Flow Rate @ 10 Ft. of Head
100 gpm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
511432
Zoro #
G901977279
UPC #
0010121002906
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Discharge Dia.
2 in
Overall Height
14 in
Cord Length
20 ft
Manufacturers Warranty Length
3 yr
Width at Widest Point
10 3/8 in
Min. Sump Pit Dia.
18 in
Body Dia.
8 3/5 in
Body Diameter
8 5/8 in
Solids Diameter - Maximum
2 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron, Thermoplastic
Flow Rate @ 10 Ft. of Head
100 gpm
Max. Head
25 ft
Impeller Material
Nylon
Discharge Standard
NPT
Phase
Single
Series
10SC-CIM
Flow Rate @ 15 Ft. of Head
80 gpm
Max. Liquid Temp.
140 Degrees F
Gauge/Conductor
16/3
Hz
60 Hz
Discharge Gender
Female
Item
Sewage Ejector Pump
Switch Electrical Connection
No Switch Included
Thermal Protection
Auto
Motor Type
Permanent Split Capacitor
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile
Discharge
2 in FNPT
Duty Cycle
Continuous
Agency Compliance
cCSAus Listed
Amps
11 A
Rated Voltage
115V AC
Flow Rate @ 20 Ft. of Head
44 gpm
RPM
3,450 RPM
Current
11.00 A
For Media Type
Sewage Water
Liquid Temperature - Maximum
140 Degrees F
Requires Control Panel
No Control Panel Required
Feet of Head - Maximum
25 ft
Flow Rate @ 10 ft of Head
100 gpm
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber
Horsepower
1/2 hp
Motor Housing Material
Cast Iron
Power Source
Corded Electric
Volute Material
Cast Iron
Frequency
60 Hz
Rotation Speed - Maximum
3,450 RPM
Discharge Orientation
Vertical
Standards
cCSAus Listed
Application
Dewatering, Transfer, Waste Removal
Shaft Seal Type
Single Mechanical
Motor Design
Permanent Split Capacitor
Installation
Submersible
Impeller Design
Vortex

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Thermoplastic, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 100 gpm, Flow Rate @ 15 Ft. of Head 80 gpm, Flow Rate @ 20 Ft. of Head 44 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
