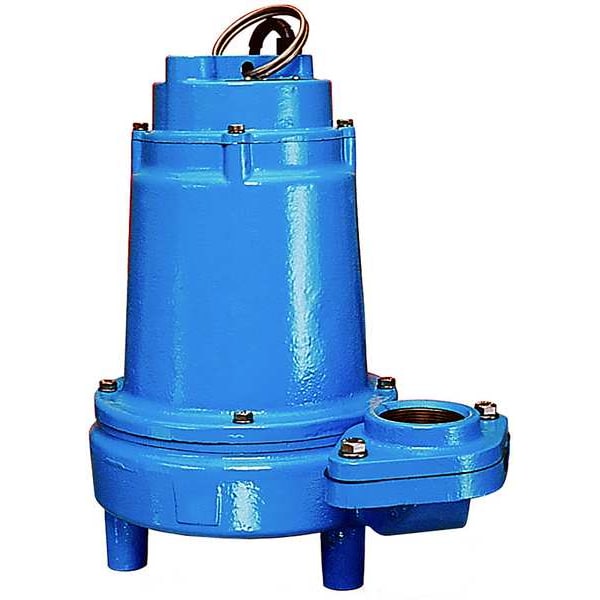

Little Giant Pump Submersible Effluent Pump, 1HP, 230V 514520 - main

Submersible Effluent Pump, 1HP, 230V

  • Mfr # 514520

  • Zoro # G6470317

product price: $1,004.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1
Impeller Material
Cast Iron
Amps
9 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
514520
Zoro #
G6470317
UPC #
010121145207
Country of Origin
Mexico

Dimensions

Cord Length
20 ft
Cord Length - Pumps
20 ft.
Min. Sump Pit Dia.
18 in
Diameter
9-57/64"
Width
10"
Height
16-5/32"
Max. Diameter Solids
3/4 in
Width at Widest Point
10 in
Minimum Water Depth
18 in
Discharge Dia.
2 in
Body Dia.
9 57/64 in
Overall Height
16 1/8 in
Water Depth - Minimum
18 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
9 7/8 in
Solids Diameter - Maximum
3/4 in
Discharge Diameter
2 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1
Impeller Material
Cast Iron
Amps
9 A
Body Material
Cast Iron
Max. Head
81 ft
Switch Actuation
No Switch Included
Base Material
Cast Iron
Pump HP
1
GPM of Water @ 40 Ft. of Head
70
Agency Compliance
cCSAus Listed
Handle
yes
GPM of Water @ 60 Ft. of Head
30
Voltage
230V
Discharge NPT
2"
Phase
Single
Bearing Type
Dual Ball
GPM of Water @ 50 Ft. of Head
50
GPM of Water @ 55 Ft. of Head
45
Hz
60 Hz
Max Head - Pumps
81 ft.
Motor Type
Oil Filled PSC
GPM of Water @ 45 Ft. of Head
60
Top Material
Cast Iron
Duty
Continuous
Max. Liquid Temp.
140 Degrees F
Switch Type - Pumps
No Switch Included
Input Phase AC
1
Motor RPM
3450
Voltage - Pumps
230VAC
Shaft Seal Material - Pumps
Carbon, Ceramic
Pump Body Material
Cast Iron
Item - Effluent Pumps
Submersible Effluent Pump
Amps - Pumps
9.00
Max. Head - Pumps
81 ft.
Pump RPM
3450
GPM of Water @ 30 Ft. of Head
90
GPM of Water @ 35 Ft. of Head
80
Impeller Material - Pumps
Cast Iron
Thermal Protection
Thermal Protection
Flow Rate @ 40 Ft. of Head
70 gpm
Discharge Gender
Female
Discharge Standard
NPT
Discharge
2 in FNPT
Rated Voltage
230V AC
Alarm Included
No
Switch Electrical Connection
No Switch Included
Flow Rate @ 60 Ft. of Head
30 gpm
RPM
3,450 RPM
Duty Cycle
Continuous
For Media Type
Effluent Water, Grey Water
Volute Material
Cast Iron
Standards
cCSAus Listed
Frequency
60 Hz
Shaft Seal Type
Single Mechanical
Flow Rate @ 40 ft of Head
70 gpm
Power Source
Corded Electric
Horsepower
1 hp
Motor Housing Material
Cast Iron
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Material
Carbon/Ceramic
Current
10.2 A
Requires Control Panel
No Control Panel Required
Feet of Head - Maximum
81 ft
Rotation Speed - Maximum
3,450 RPM
Includes Alarm
No Alarm Included

Description

Effluent Pump, HP 1, Rated Voltage 230V AC, Hz 60 Hz, Phase - Pumps 1, Amps 9 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 40 Ft. of Head 70 gpm, Flow Rate @ 60 Ft. of Head 30 gpm, Max. Head 81 ft, Min. Sump Pit Dia. 18 in, Minimum Water Depth 18 in, Body Dia. 9 57/64 in, Width at Widest Point 10 in, Overall Height 16 1/8 in, Cord Length 20 ft
