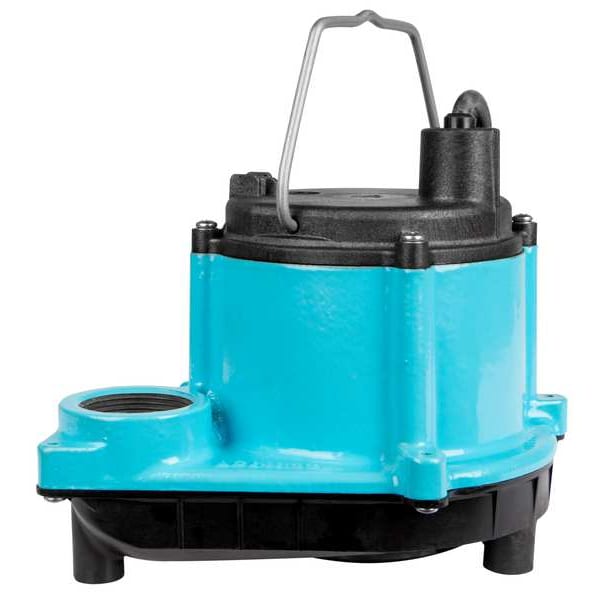

Little Giant Pump Submersible Sump Pump, 25ft, 7.125 in, 115V AC 506274 - main

Submersible Sump Pump, 25ft, 7.125 in, 115V AC

  • Mfr # 506274

  • Zoro # G801968759

product price:  $261.99
/ea
Free Shipping & Returns

Key Features

Cord Length
25 ft
HP
1/3
Hz
50/60 Hz
Impeller Material
Nylon
Max. Head
18 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
506274
Zoro #
G801968759
UPC #
0010121062740
Country of Origin
Mexico

Dimensions

Cord Length
25 ft
Min. Sump Pit Dia.
12 in
Manufacturers Warranty Length
3 yr
Overall Height
7 1/8 in
Discharge Dia.
1 1/2 in
Width at Widest Point
9 1/2 in
Discharge Diameter
1 1/2 in
Body Diameter
7 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
0 in

Details

HP
1/3
Hz
50/60 Hz
Impeller Material
Nylon
Max. Head
18 ft
Phase
Single
Agency Compliance
cCSAus Listed
NEC Cord Designation
SJTW
Item
Submersible Sump Pump
Gauge/Conductor
18/3
Thermal Protection
Auto
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile Rubber
Amps
9.0 A
Application
Dewatering, Transfer
Alarm Included
No
Base Material
Polypropylene
Discharge Gender
Female
Body Material
Cast Iron
Discharge Standard
NPT
Series
6-CIM-R
Duty Cycle
Continuous
Discharge
1 1/2 in FNPT
Switch Actuation
No Switch Included
Switch Electrical Connection
No Switch Included
Flow Rate @ 15 Ft. of Head
12.5 gpm
Flow Rate @ 10 Ft. of Head
29 gpm
Flow Rate @ 5 Ft. of Head
46 gpm
Rated Voltage
115V AC
Standards
cCSAus
Operation
Manual
Horsepower
1/3 hp
Flow Rate @ 10 ft of Head
29 gpm
Motor Housing Material
Cast Iron
Requires Control Panel
No Control Panel Required
Hazardous Location Class
Not Rated
For Media Type
Clear Water
Shaft Seal Material
Ceramic/Nitrile Rubber
Rotation Speed - Maximum
1,500 RPM
Frequency
60 Hz
Feet of Head - Maximum
18 ft
Impeller Design
Non-Clog
Volute Material
Plastic
Shaft Seal Type
Single Mechanical
Includes Alarm
No Alarm Included
Power Source
Corded Electric
For Industry
Residential
Liquid Temperature - Maximum
140 Degrees F
Installation
Submersible
Current
9.0 A

Description

Submersible Sump Pump, HP 1/3, Rated Voltage 115V AC, Hz 50/60 Hz, Amps 9.0 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Off Point Not Applicable, On Point Not Applicable, Body Material Cast Iron, Impeller Material Nylon, Shaft Seal Material - Pumps Carbon, Ceramic, Nitrile Rubber, Flow Rate @ 5 Ft. of Head 46 gpm, Flow Rate @ 10 Ft. of Head 29 gpm, Flow Rate @ 15 Ft. of Head 12.5 gpm, Max. Head 18 ft, Min. Sump Pit Dia. 12 in, Overall Height 7 1/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
