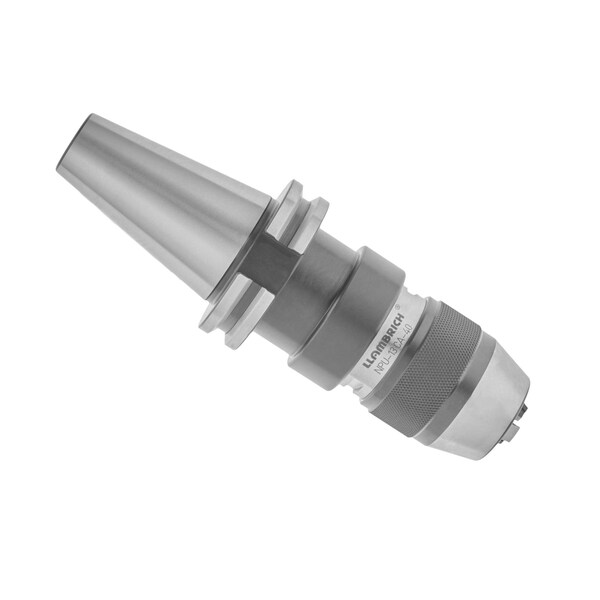

NPU High Precision Keyless Drill Chuck 1/32"-1/2" with CAT40 Shank
Mfr # NPU-13 CA 40-A
Zoro # G622447563
product price:Â
$
655.99
/ea
Free Shipping & Returns
Key Features
Chuck Type
Keyless
Material
Steel
Bearing Type
Ball
Capacity Max.
1/2 in
Capacity Min.
1/32 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NPU-13 CA 40-A
- Zoro #
- G622447563
- UPC #
- -
- Country of Origin
- Spain
Dimensions
- Length
- 4.96 in
- Outside Diameter
- 1.889 in
Details
- Item
- Drill Chuck
- Chuck Type
- Keyless
- Material
- Steel
- Bearing Type
- Ball
- Capacity Max.
- 1/2 in
- Capacity Min.
- 1/32 in
- Mounting Type
- CAT
- For Use With
- CNC Machines for Milling/Drilling/Reaming/Tapping
- Finish
- Hardened
- Includes
- Drill Chuck, Chuck Wrench
- Includes Key
- No
- Jaw Type
- Hardened Steel
- Turn Direction
- CW
- Compatible Tool Type
- High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment
- Type
- Precision
Description
The Self-Tightening High Precision Keyless Drill Chuck features a capacity of up to 5/8" and a maximum runout of 0.0016". The self-tightening mechanism automatically increases clamping forces in proportion to the torque increase during drilling, preventing tool slippage in clockwise rotation. The integrated machine tapers of the NPU series provide maximum rigidity and accuracy with a shorter projection. Supplemental tightening can be applied with milled flats and included spanner wrench to provide up to three times holding torque to resist tool loosening on machines with instant spindle stop.
