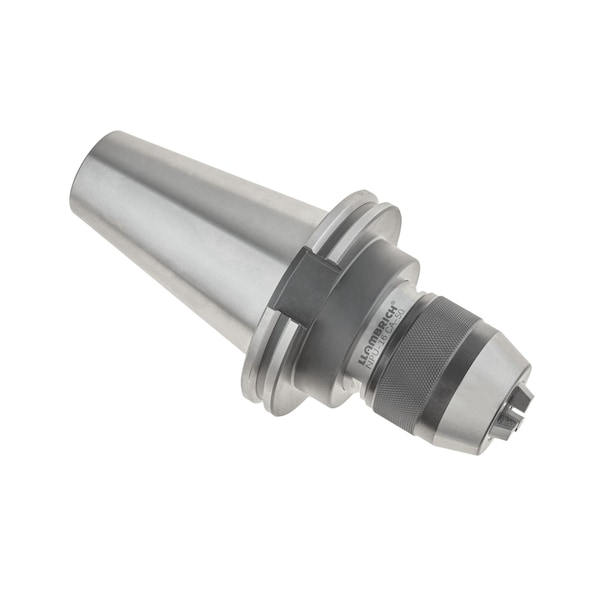

NPU High Precision Keyless Drill Chuck 1/8"-5/8" with CAT50 Shank
Mfr # NPU-16 CA 50-A
Zoro # G822447578
product price:Â
$
915.99
/ea
Free Shipping & Returns
Key Features
Chuck Type
Keyless
Material
Steel
Bearing Type
Ball
Capacity Max.
5/8 in
Capacity Min.
1/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- NPU-16 CA 50-A
- Zoro #
- G822447578
- UPC #
- -
- Country of Origin
- Spain
- Item
- Drill Chuck
- Chuck Type
- Keyless
- Material
- Steel
- Bearing Type
- Ball
- Capacity Max.
- 5/8 in
- Capacity Min.
- 1/8 in
- Includes Key
- No
- Mounting Type
- CAT
- Type
- Precision
- Compatible Tool Type
- High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment
- Turn Direction
- CW
- Finish
- Hardened
- Includes
- Drill Chuck, Chuck Wrench
- For Use With
- CNC Machines for Milling/Drilling/Reaming/Tapping
- Jaw Type
- Hardened Steel
Description
The Self-Tightening High Precision Keyless Drill Chuck features a capacity of up to 5/8" and a maximum runout of 0.0016". The self-tightening mechanism automatically increases clamping forces in proportion to the torque increase during drilling, preventing tool slippage in clockwise rotation. The integrated machine tapers of the NPU series provide maximum rigidity and accuracy with a shorter projection. Supplemental tightening can be applied with milled flats and included spanner wrench to provide up to three times holding torque to resist tool loosening on machines with instant spindle stop.
