  11. Keyed Drill Chuck 1/2" Cap., 1/2-20 Mount Size, Steel
Llambrich Usa Keyed Drill Chuck 1/2" Cap., 1/2-20 Mount Size, Steel CY-13 R-1/2 - main

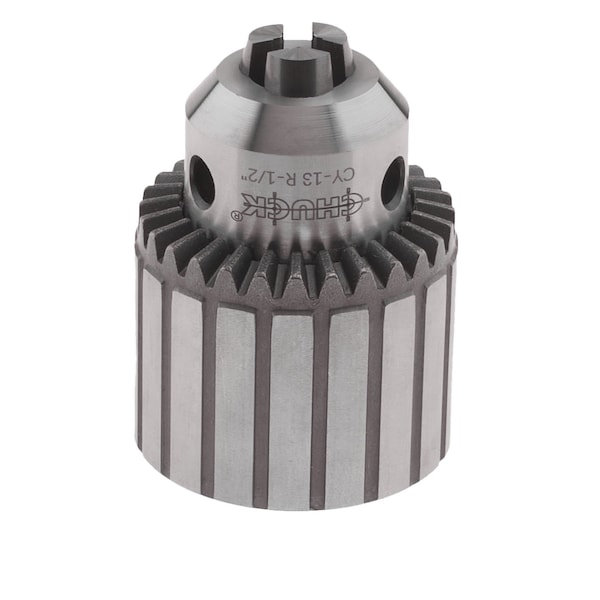

Keyed Drill Chuck 1/2" Cap., 1/2-20 Mount Size, Steel

  • Mfr # CY-13 R-1/2

  • Zoro # G2896774

product price: $78.29
/ea
Free Shipping & Returns

Key Features

Chuck Type
Keyed
Material
Steel
Bearing Type
Plain
Capacity Max.
0.500"
Capacity Min.
0.080"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CY-13 R-1/2
Zoro #
G2896774
UPC #
-
Country of Origin
Spain

Dimensions

Mounting Size
1/2"-20
Overall Length
3.0310 in
Compatible Drill Diameter - Minimum
3/64 in
Compatible Drill Diameter - Maximum
1/2 in

Details

Item
Drill Chuck
Chuck Type
Keyed
Material
Steel
Bearing Type
Plain
Capacity Max.
0.500"
Capacity Min.
0.080"
Nominal Capacity
1/2 in
Key Number
K2
Includes
Chuck Key
Mounting Type
Threaded
Min. Drill Capacity
3/64 in
Application
Electric Portable Drilling Machines
Material - Machining
High Speed Steel
Keying
Keyed
Max. Drill Capacity
1/2 in
Features
One-piece Gear Ring and Sleeve Eliminate the possibility of Tooth Breakage
For Use With
Milling and Woodworking Machines, Stationary Drilling Machines, Turning
Product Type
Drill Chuck
Type
Medium Duty
Duty Rating
Medium
Compatible Tool Type
Stationary Drilling Machines
Includes Key
Chuck Key Included
Finish
Hardened
Series
CY
Turn Direction
CW/CCW
Includes Sleeve
Sleeve Included

Description

Drill Chuck, Electric Portable Drilling Machines, Threaded, Mounting Size 1/2 In.-20, Max. Drill Capacity 1/2 in
