  11. Keyed Drill Chuck 1/2" Cap., 5/8-16 Mount Size, Steel

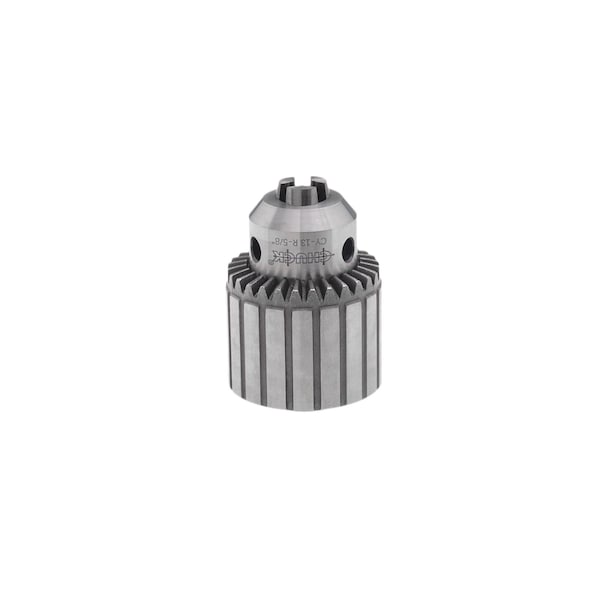

Llambrich Usa Keyed Drill Chuck 1/2" Cap., 5/8-16 Mount Size, Steel CY-13 R-5/8 - main

Keyed Drill Chuck 1/2" Cap., 5/8-16 Mount Size, Steel

  • Mfr # CY-13 R-5/8

  • Zoro # G0467494

product price: $72.99
/ea

Key Features

Chuck Type
Keyed
Material
Steel
Bearing Type
Plain
Capacity Max.
0.500"
Capacity Min.
0.080"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CY-13 R-5/8
Zoro #
G0467494
UPC #
-
Country of Origin
Spain

Dimensions

Mounting Size
5/8"-16
Overall Length
3.0310 in
Compatible Drill Diameter - Maximum
1/2 in
Compatible Drill Diameter - Minimum
3/64 in

Details

Item
Drill Chuck
Chuck Type
Keyed
Material
Steel
Bearing Type
Plain
Capacity Max.
0.500"
Capacity Min.
0.080"
Mounting Type
Threaded
Key Number
K2
Includes
Chuck Key
Nominal Capacity
1/2 in
Features
One-piece Gear Ring and Sleeve Eliminate the possibility of Tooth Breakage
Min. Drill Capacity
3/64 in
Material - Machining
High Speed Steel
Max. Drill Capacity
1/2 in
Application
Electric Portable Drilling Machines
Keying
Keyed
For Use With
Milling and Woodworking Machines, Stationary Drilling Machines, Turning
Product Type
Drill Chuck
Type
Medium Duty
Duty Rating
Medium
Finish
Hardened
Compatible Tool Type
Stationary Drilling Machines
Turn Direction
CW/CCW
Includes Sleeve
Sleeve Included
Includes Key
Chuck Key Included
Series
CY

Description

Drill Chuck, Electric Portable Drilling Machines, Threaded, Mounting Size 5/8 In.-16, Max. Drill Capacity 1/2 in
