  11. Keyless Drill Chuck 0.630" Cap., 5/8-16 Mount Size

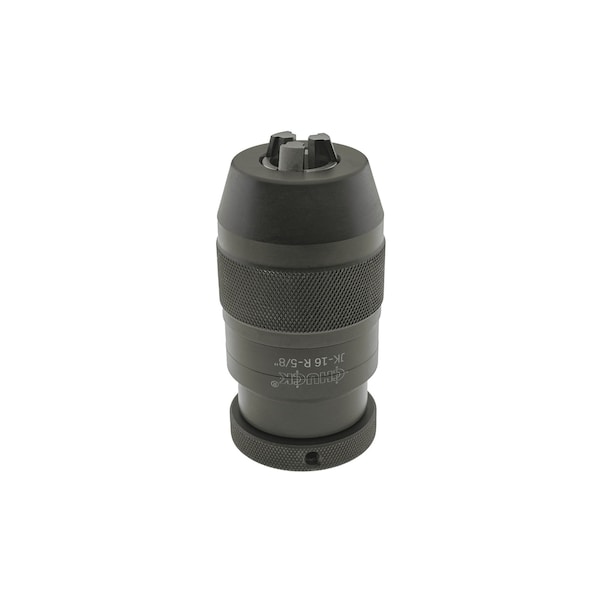

Llambrich Usa Keyless Drill Chuck 0.630" Cap., 5/8-16 Mount Size JK 16 R-5/8 - main

Keyless Drill Chuck 0.630" Cap., 5/8-16 Mount Size

  • Mfr # JK 16 R-5/8

  • Zoro # G0912545

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Chuck Type
Keyless
Material
Steel
Bearing Type
Plain
Capacity Max.
0.630"
Capacity Min.
0.118"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JK 16 R-5/8
Zoro #
G0912545
UPC #
-
Country of Origin
Spain

Dimensions

Mounting Size
5/8"-16
Overall Length
4.1340 in
Compatible Drill Diameter - Minimum
1/8 in
Compatible Drill Diameter - Maximum
5/8 in

Details

Item
Drill Chuck
Chuck Type
Keyless
Material
Steel
Bearing Type
Plain
Capacity Max.
0.630"
Capacity Min.
0.118"
Nominal Capacity
5/8 in
Mounting Type
Threaded
For Use With
Portable Drilling Machines
Max. Drill Capacity
5/8 in
Material - Machining
High Speed Steel
Features
Self-Tightening Mechanism Automatically Increases the Clamping Forces in proportion to the Increase in Torque during the Drilling Operation
Keying
Keyless
Min. Drill Capacity
1/8 in
Application
Professional Hand Held Drilling Machines and With Tapered Mounts for Stationary Drilling Machines
Product Type
Drill Chuck
Type
Medium Duty
Series
JK-Solid
Compatible Tool Type
Portable Drilling Machines
Includes Key
Key Not Included
Turn Direction
CW

Description

Drill Chuck, Professional Hand Held Drilling Machines and With Tapered Mounts for Stationary Drilling Machines, Threaded, Mounting Size 5/8 In.-16, Max. Drill Capacity 5/8 in
