  6. Keyless High Precision Drill Chuck 0.118" Cap., 0JT Mount Size, Steel

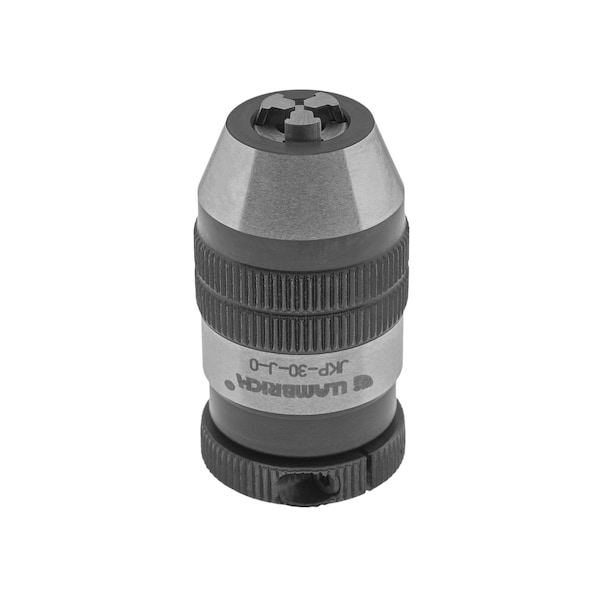

Llambrich Usa Keyless High Precision Drill Chuck 0.118" Cap., 0JT Mount Size, Steel JKP-30 J-0 - main

Keyless High Precision Drill Chuck 0.118" Cap., 0JT Mount Size, Steel

  • Mfr # JKP-30 J-0

  • Zoro # G0564855

product price:  $300.99
/ea
Free Shipping & Returns

Key Features

Chuck Type
High Precision
Material
Steel
Bearing Type
Ball
Capacity Max.
1/8 in
Capacity Min.
1/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
JKP-30 J-0
Zoro #
G0564855
UPC #
-
Country of Origin
Spain

Dimensions

Mounting Size
JT0
Overall Length
1.8700 in
Compatible Drill Diameter - Minimum
1/64 in
Compatible Drill Diameter - Maximum
1/8 in
Outside Diameter
0.965 in
Length
1.87 in

Details

Item
Drill Chuck
Chuck Type
High Precision
Material
Steel
Bearing Type
Ball
Capacity Max.
1/8 in
Capacity Min.
1/64 in
Mounting Type
Jacobs Taper
Features
Self-Tightening Mechanism Automatically Increases the Clamping Forces in proportion to the Increase in Torque during the Drilling Operation
Application
Drill Presses With High Accuracy, Jig Bore Machines, Mills Where The Application Requires Higher Feed Rates
Keying
Keyless
For Use With
High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment
Material - Machining
High Speed Steel
Min. Drill Capacity
1/8 in
Max. Drill Capacity
1/8 in
Product Type
Drill Chuck
Type
Precision
Compatible Tool Type
High-Accuracy Drill Presses, Jig Borers, Milling Machines and Production Drilling Equipment
T.I.R. Tolerance
0.0016 in
Series
JKP
Turn Direction
CW
Includes Key
No
Finish
Hardened
Jaw Type
Hardened Steel

Description

Drill Chuck, Drill Presses With High Accuracy, Jig Bore Machines, Mills Where The Application Requires Higher Feed Rates, Jacobs Taper, Mounting Size JT0, Max. Drill Capacity 1/8 in
