  11. Keyless High Torque Drill Chuck 0.630" Cap., 3MT Mount Size, Steel

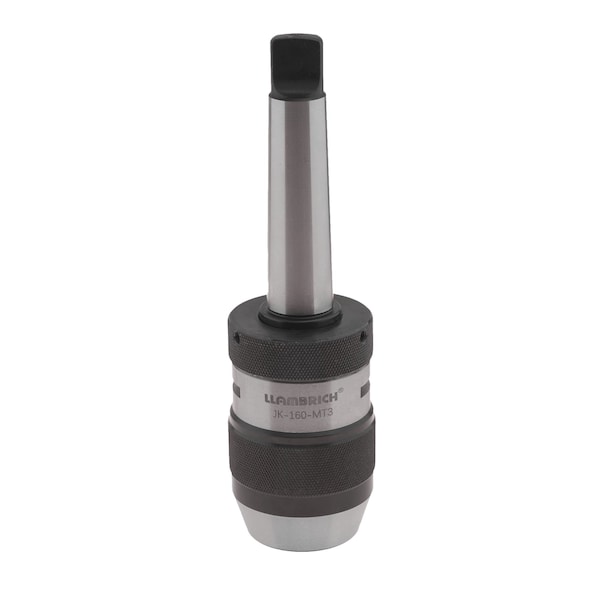

Llambrich Usa Keyless High Torque Drill Chuck 0.630" Cap., 3MT Mount Size, Steel JK-16 MT3 - main

Keyless High Torque Drill Chuck 0.630" Cap., 3MT Mount Size, Steel

  • Mfr # JK-16 MT3

  • Zoro # G1619633

product price: $361.99
/ea
Free Shipping & Returns

Key Features

Chuck Type
High Torque
Material
Steel
Bearing Type
Plain
Capacity Max.
0.630"
Capacity Min.
0.118"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
JK-16 MT3
Zoro #
G1619633
UPC #
-
Country of Origin
Spain

Dimensions

Mounting Size
MT3
Overall Length
3.7800 in
Compatible Drill Diameter - Maximum
5/8 in
Compatible Drill Diameter - Minimum
1/8 in

Details

Item
Drill Chuck
Chuck Type
High Torque
Material
Steel
Bearing Type
Plain
Capacity Max.
0.630"
Capacity Min.
0.118"
Nominal Capacity
5/8 in
Includes
Wrench
Mounting Type
Morse Taper
For Use With
Conventional or CNC Equipment
Max. Drill Capacity
5/8 in
Keying
Keyless
Material - Machining
High Speed Steel
Application
Drill Presses With High Accuracy, Jig Bore Machines, Mills Where The Application Requires Higher Feed Rates
Features
Self-Tightening Mechanism Automatically Increases the Clamping Forces in proportion to the Increase in Torque during the Drilling Operation
Min. Drill Capacity
1/8 in
Product Type
Drill Chuck
Type
High Torque w/Intergrated Shank
Includes Arbor
Arbor Included
Series
JK-Solid
Turn Direction
CW
Includes Key
Key Not Included
Includes Wrench
Wrench Included

Description

Drill Chuck, Drill Presses With High Accuracy, Jig Bore Machines, Mills Where The Application Requires Higher Feed Rates, Morse Taper, Mounting Size MT3, Max. Drill Capacity 5/8 in
