  9. Pump with Flanges, 1/6 HP, 120V, 1 Phase

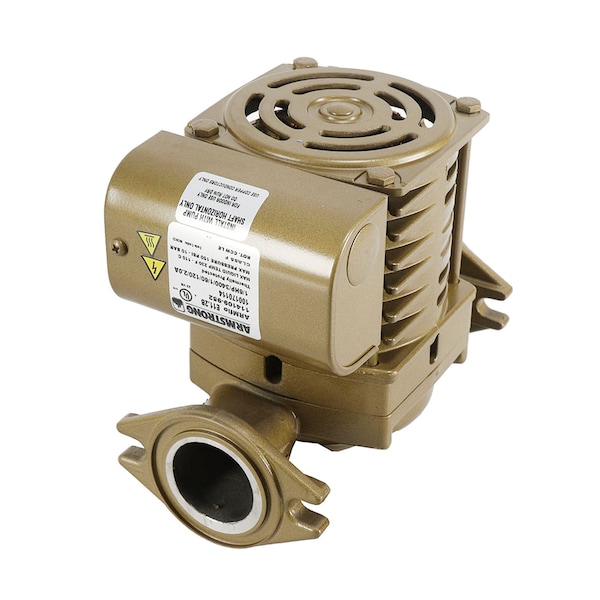

Lochinvar Pump with Flanges, 1/6 HP, 120V, 1 Phase ARM3045PAB - main

Pump with Flanges, 1/6 HP, 120V, 1 Phase

  • Mfr # ARM3045PAB

  • Zoro # G2492379

product price: $1,519.99
/ea
Free Shipping & Returns

Key Features

For Use With
Copper-Fin Water Heaters CW 90-500; Circulating Pumps; Copper-Fin 090-500 Water Heaters; RB/RW 399-500 Boilers & Water Heaters
Voltage
120v
Phase
1
Motor Enclosure Design
Open Drip Proof
Application
Circulating
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ARM3045PAB
Zoro #
G2492379
UPC #
-
Country of Origin
United States

Dimensions

For Inlet Pipe Diameter
1 1/2 in
Face to Face Dimension
8 1/2 in

Details

Item
Pump with Flanges, 1/6 HP, 120V, 1 Phase
For Use With
Copper-Fin Water Heaters CW 90-500; Circulating Pumps; Copper-Fin 090-500 Water Heaters; RB/RW 399-500 Boilers & Water Heaters
Voltage
120v
Phase
1
Motor Enclosure Design
Open Drip Proof
Application
Circulating
Motor Design
Permanent Split Capacitor
For Use With Potable Systems
Yes
Includes Volute
Volute Included
ANSI Flange Class
Class 150
Requires Dedicated Return Line
No Dedicated Return Line Required
Horsepower
1/6 hp
Media Temperature - Minimum
32 Degrees F
Number of Flange Mounting Holes
2
Media Temperature - Maximum
230 Degrees F
Includes Union
No Union Included
Includes Flange
Flange Included
Nameplate Voltage
120V AC
Number of Pump Heads
1
Pump Technology
Centrifugal
Rotor Type
Dry
Electrical Connection Type
Hardwired
Feet of Head - Maximum
15 ft
Thermostat Included
No Thermostat Included
Includes Timer
No Timer Included
Frequency
60 Hz
Operating Modes
Constant Pressure
Impeller Material
Plastic
Series
E Series
Priming
Self-Priming
Pump Casing Material
Bronze
Connection Standard
Flange
Mounting Orientation
Horizontal
For Media Type
Clear Water
Flow Rate - Maximum
30 gpm
Pump Construction
3-Piece
Full Load Current
2.0 A

Description

Circulating Pump, Face to Face Dimension 8 1/2 in, For Use With Potable Systems Yes, Horsepower 1/6 hp, Maximum Flow Rate @ 10 Feet of Head Not Applicable, Maximum Flow Rate @ 15 Feet of Head Not Applicable, Nameplate Voltage 120V AC, Number of Speeds 1, Phase Single, Maximum Flow Rate @ 30 Feet of Head Not Applicable, Maximum Flow Rate @ 5 Feet of Head Not Applicable, Series E Series, Electrical Connection Type Hardwired, Frequency 60 Hz
