  5. Adhesive, H3101 Series, Clear, 2 oz, Tube, 1:01 Mix Ratio, Not Rated Functional Cure
Loctite Adhesive, H3101 Series, Clear, 2 oz, Tube, 1:01 Mix Ratio, Not Rated Functional Cure 2018435 - main
Shop LOCTITE

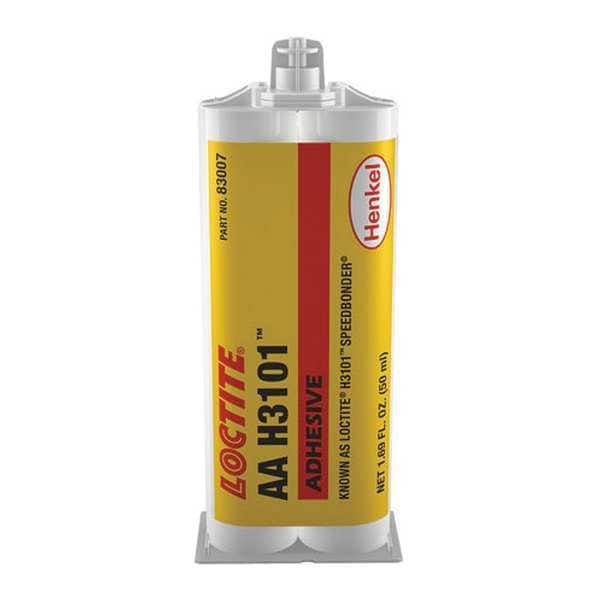

Adhesive, H3101 Series, Clear, 2 oz, Tube, 1:01 Mix Ratio, Not Rated Functional Cure

  • Mfr # 2018435

  • Zoro # G5007095

product price:  $29.89
/ea

Key Features

Type
Acrylic
Application
Bonding
Color
Clear
For Use On
Applicator, Mixing Tip
Container Size
2 oz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2018435
Zoro #
G5007095
UPC #
079340006584
Country of Origin
United States

Dimensions

Container Size
2 oz
Size
1.69 oz

Details

Item
Adhesive
Type
Acrylic
Application
Bonding
Color
Clear
For Use On
Applicator, Mixing Tip
Container Type
Tube
Functional Cure
Not Rated
Full Cure
24 hr
Mixing Ratio
1:01
Shear Strength
2,509 psi
Temp. Range
-65 Degrees to 250 Degrees
Working Time
20 min
Series
H3101
Temp. Range (F)
-65 Degrees to 250 Degrees
Structural Adhesive Type
Epoxy Adhesive
Work Life
20 min
Epoxy Container
Dual-Cartridge
Epoxy Max. Temp
250 Degrees to 299 Degrees F
Epoxy Color
Tan
Shear Strength (PSI)
2,510
Includes
Resin and Hardener
For Use With
Applicator, Mixing Tip
Resin Type
Acrylic
Application Method
Two-Part Dispenser
Cured Color
White
Compatible Mixer Tip
833982
VOC Content Weight Percentage
0.3%
Materials Bonded
Metal, Plastic
VOC Content Weight
2.87 g/L
Compatible Applicator
720228
Included Components
Resin and Hardener
Alternate Product Name
AA H3101
Low Odor
No
Primary Applications
General Purpose
Minimum Viscosity
45,000 cps
Marine Grade
No
Interior/Exterior
Interior Only
Maximum Viscosity
110,000 cps
Peel Strength
22 lb/in
Minimum Performance Temperature
-65 Degrees F
Hardener Volume
25 mL
Resin Color
White
Compatible Applicator (Grainger Part Number)
3NVL4
Non-Sagging
Yes
Resin Volume
25 mL
Hardener Color
Light Tan
Features
Environmental Resistant, Excellent Tolerance to Off-Ratio Mixing, High Impact Strength, High Peel Strength
Standards
ISO 11339, ISO 13445, ISO 4587
Cure Method
Ambient
Maximum Performance Temperature
250 Degrees F
Full Cure Time
24 hr
Total Volume
50 mL
Water Resistance
Not Water-Resistant
Container Type - Adhesives
Dual-Cartridge

Description

Acrylic Adhesive, Compatible Applicator 720228, Compatible Mixer Tip 833982, Container Type Dual-Cartridge, Cure Method Ambient, Cured Color White, Features Environmental Resistant, Excellent Tolerance to Off-Ratio Mixing, High Impact Strength, High Peel Strength, For Use With Applicator, Mixing Tip, Hardener Volume 25 mL, Included Components Resin and Hardener, Interior/Exterior Interior Only, Low Odor No, Marine Grade No, Materials Bonded Metal, Plastic, VOC Content Weight 2.87 g/L
