Shop LOCTITE

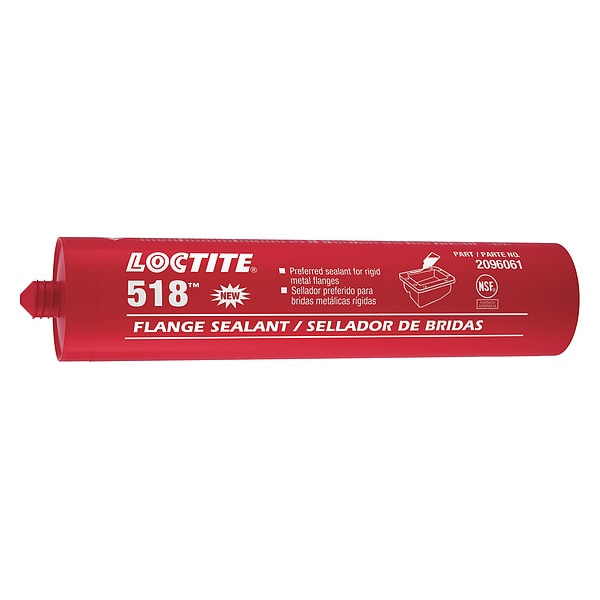

Anaerobic Gasket Sealant, 300 mL, Red, Temp Range -65 to 300 Degrees F

  • Mfr # 2096061

  • Zoro # G5770838


product price:  $102.99
/ea
Free Shipping & Returns

Key Features

Application
Fittings, Gauges, Metal Threads, Pipes, Refrigerant Systems,Stem, Steel and Brass, Valves
Color
Red
Substrates
Rigid Iron, Steel, Aluminum
Temp. Range
-65 to 300 Degrees F
Sealant Container
Cartridge
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2096061
Zoro #
G5770838
UPC #
079340010741
Country of Origin
United States

Dimensions

Size
300 mL
Container Size
10.14 fl oz
Maximum Gap Fill Size
0.01 in

Details

Application
Fittings, Gauges, Metal Threads, Pipes, Refrigerant Systems,Stem, Steel and Brass, Valves
Color
Red
Substrates
Rigid Iron, Steel, Aluminum
Temp. Range
-65 to 300 Degrees F
Sealant Container
Cartridge
Item
Gasket Sealant
Type
Anaerobic
Full Cure
4 hr
Begins to Harden
30 min
Flash Point
212 Degrees F
Viscosity
paste
Expansion Ratio
Fills gaps up to 0.009 in
Specific Gravity
1.1
Characteristics
General Purpose, Rigid, Thixotropic
Standards
California Proposition 65CEPA DSL/NDSL, CERCLA/SARA Section 302 EHS, CERCLA/SARA Section 311/312, CERCLA/SARA Section 313, OSHA 29 CFR 1910.1200, TSCA
Container Type
Cartridge
VOC Content
4.28 g/L
Tensile Strength
13 N/sq mm
Chemical Base
Dimethacrylate Ester
Product Form
Gel
Cure Type
Anaerobic
Minimum Viscosity
500,000 cps
Sensor Safe
No
Minimum Operating Temperature
-65 Degrees F
Series
518
Working Time
25 min
Storage Requirements
8 Degrees to 21 Degrees C
Sealant Type
Gasket Sealant
Maximum Viscosity
4,500,000 cps
Non-Hardening
Yes
Maximum Operating Temperature
300 Degrees F
Specific Sealing Application
Engine Casing, Gear Boxes
Shear Strength
1,525 psi
Full Cure Time
4 hr
For Material Type
Aluminum, Cast Iron, Iron, Steel

Description

LOCTITE® 518 is a general purpose, primerless, semi-flexible, form-in-place anaerobic flange sealant. It cures – even in the presence of minor surface contaminants – to seal close fitting joints between rigid metal flanges, and will flex with minor flange movements. It provides resistance to low pressures immediately after assembly of flanges, and is ideal for use on aluminum substrates where you need very good flexibility. Typically used as a form-in-place gasket for pumps, thermostats, compressors, transmission housings and axle covers, it not only works on active metals (e.g. mild steel) but also on passive substrates, such as aluminum with a low copper content. You can expect gap performance to 0.25 mm (0.01"). Semi-flexible anaerobic flange sealant Adapts to surface irregularities and gap fill up to 0.25 mm (0.01") Forms an instant low-pressure seal Cures on inactive surfaces without primer NSF registered

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
