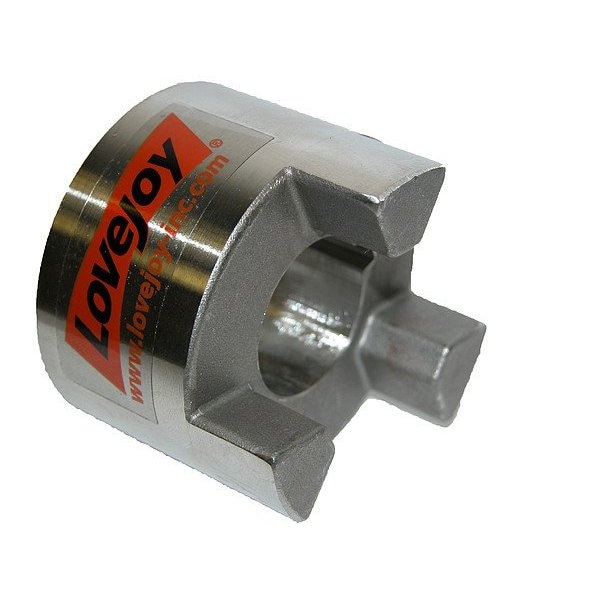

Jaw Coupling Hub, 2.0625" O.D.
Mfr # 68514470015
Zoro # G016035314
product price: $112.99
/ea
Free Shipping & Returns
Key Features
Standards
ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Keyway Depth
1/8 in
Outside Diameter
2 1/16 in
Hub Material
Stainless Steel
Hub Diameter
2 1/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
68514470015
Zoro #
G016035314
UPC #
0685144700155
Country of Origin
United States
Dimensions
Keyway Depth
1/8 in
Outside Diameter
2 1/16 in
Hub Diameter
2 1/16 in
Coupling Overall Length
1 33/64 in
Length through Bore
1 in
Maximum Bore Diameter
1 in
Keyway Width
1/4 in
Bore Diameter
1 in
Minimum Bore Diameter
1/4 in
Coupling Size
SS095
Details
Standards
ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Item
Jaw Coupling Hub
Hub Material
Stainless Steel
Features
The SS Type coupling consists of two standard SS Type hubs and one spider
System of Measurement
Inch
Weight
0.8 lb
Bore Type
Round Bore with Keyway
Maximum Speed
9,000 RPM
Shaft Locking Type
Set Screw
Horsepower @ 100 RPM
0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze)
Description
Jaw Coupling Hub, Coupling Size SS095, Outside Diameter 2 1/16 in, Coupling Overall Length 1 33/64 in, System of Measurement Inch, Hub Material Stainless Steel, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.308 (Buna N Rubber), 0.462 (Urethane), 0.890 (Hytrel and Bronze), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Features The SS Type coupling consists of two standard SS Type hubs and one spider
