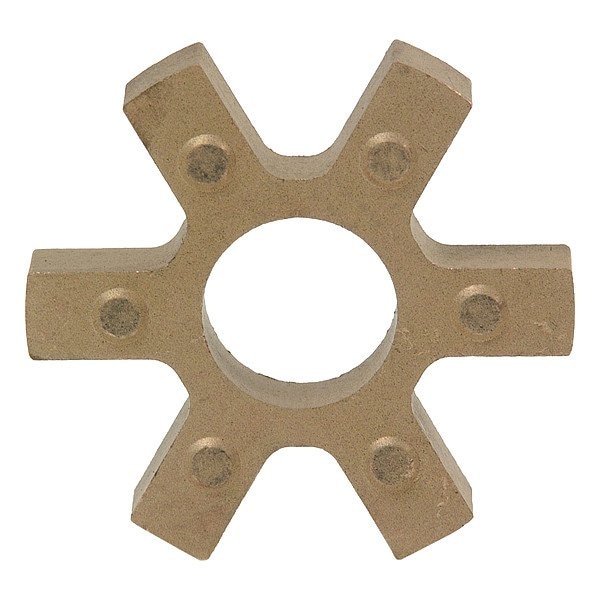

Jaw Coupling Insert, Bost-Bronz Spider
Mfr # 68514411073
Zoro # G616035417
product price: $59.79
/eaKey Features
Color
Bronze
Coupling Size
AL090, AL095, L090, L095
Parallel Misalignment
0.01 in
Angular Misalignment
0.5 Degrees
Maximum Operating Temperature
450 Degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
68514411073
Zoro #
G616035417
UPC #
0685144110732
Country of Origin
United States
Dimensions
Coupling Size
AL090, AL095, L090, L095
Spider Width
0.44 in
Outside Diameter
2 1/8 in
Details
Color
Bronze
Item
Jaw Coupling Insert
Parallel Misalignment
0.01 in
Angular Misalignment
0.5 Degrees
Maximum Operating Temperature
450 Degrees F
For Misalignment Type
Angular, Parallel
Spider Material
Bost-Bronz
Minimum Operating Temperature
-40 Degrees F
Resistance Properties
Oil Resistant, Water Resistant
System of Measurement
Inch
Weight
0.22 lb
Maximum Speed
250 RPM
Standards
ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
Spider Type
Open Center Spider
Maximum Torque
401 in-lb
Horsepower @ 100 RPM
0.64, 0.89
Description
Jaw Coupling Insert, Coupling Size AL090, AL095, L090, L095, Outside Diameter 2 1/8 in, System of Measurement Inch, Maximum Speed 250 RPM, Horsepower @ 100 RPM 0.64, 0.89, Spider Material Bost-Bronz, Maximum Torque 401 in-lb, Parallel Misalignment 0.01 in, Durometer Hardness Not Applicable, Axial Motion Not Applicable, Angular Misalignment 0.5 Degrees , Color Bronze, For Misalignment Type Angular, Parallel, Maximum Operating Temperature 450 Degrees F, Minimum Operating Temperature -40 Degrees F
