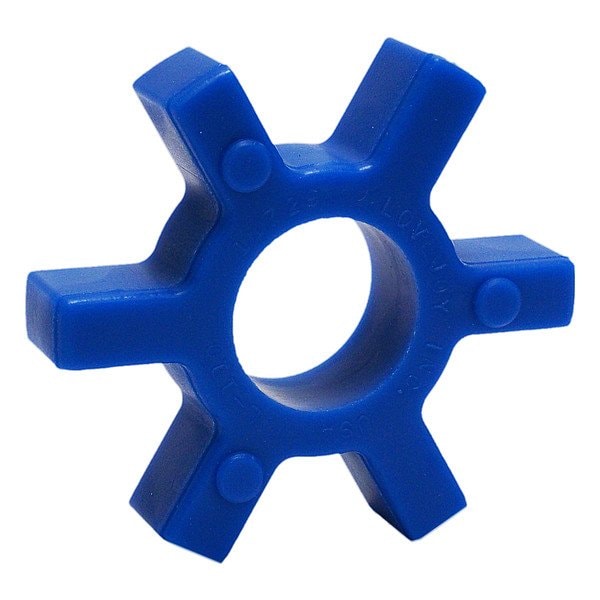

Jaw Coupling Insert, Urethane Spider
Mfr # 68514411499
Zoro # G516035418
product price:Â $55.65
/eaKey Features
Color
Blue
Coupling Size
AL099, AL100, L099, L100
Resistance Properties
Chemical Resistant, Oil Resistant
Spider Material
Urethane
Spider Width
0.61 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 68514411499
- Zoro #
- G516035418
- UPC #
- 0685144114990
- Country of Origin
- United States
Dimensions
- Coupling Size
- AL099, AL100, L099, L100
- Spider Width
- 0.61 in
- Outside Diameter
- 2 35/64 in
Details
- Item
- Jaw Coupling Insert
- Color
- Blue
- Resistance Properties
- Chemical Resistant, Oil Resistant
- Spider Material
- Urethane
- Parallel Misalignment
- 0.015 in
- Maximum Operating Temperature
- 160 Degrees F
- Angular Misalignment
- 1 Degrees
- For Misalignment Type
- Angular, Parallel
- Maximum Speed
- 3,600 RPM
- Standards
- ANSI B92.1A, ANSI/AGMA 9002-B04, ANSI/AGMA 9112-A04, DIN 5480
- Spider Type
- Open Center Spider
- Weight
- 0.06 lb
- Durometer Hardness
- 55D
- Minimum Operating Temperature
- -30 Degrees F
- System of Measurement
- Inch
- Horsepower @ 100 RPM
- 0.76, 0.99
- Maximum Torque
- 792 in-lb
Description
Jaw Coupling Insert, Coupling Size AL099, AL100, L099, L100, Outside Diameter 2 35/64 in, System of Measurement Inch, Maximum Speed 3,600 RPM, Horsepower @ 100 RPM 0.76, 0.99, Spider Material Urethane, Maximum Torque 792 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion Not Applicable, Angular Misalignment 1 Degrees , Color Blue, For Misalignment Type Angular, Parallel, Maximum Operating Temperature 160 Degrees F, Minimum Operating Temperature -30 Degrees F
