Shop LUMINAIRE LED

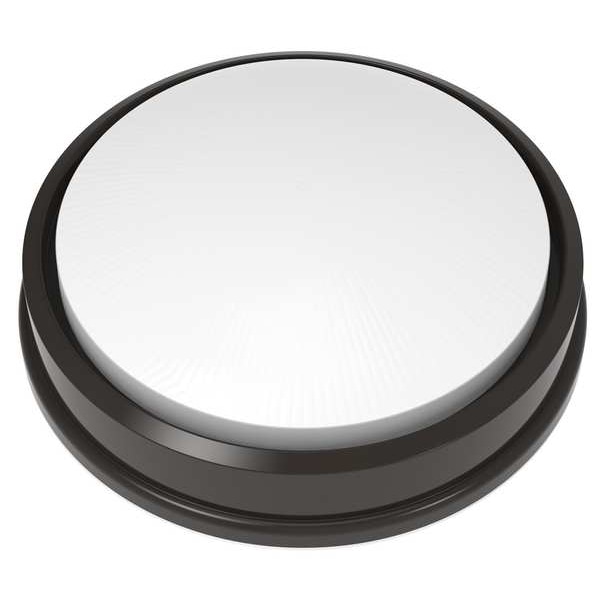

Vandal and Ligature Resistant Fixture

  • Mfr # ARV17 MIN10 50W 40K MVOLT OP BRZ

  • Zoro # G401701220

product price:  $659.99
/ea
Free Shipping & Returns

Key Features

Light Technology
LED
Lighting Technology
LED
Lighting Certification
Unrated
Voltage
120/277V AC
Color Temperature
4000K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ARV17 MIN10 50W 40K MVOLT OP BRZ
Zoro #
G401701220
UPC #
194995424429
Country of Origin
United States

Dimensions

Overall Length
17 in
Nominal Length
1 1/2 ft
Lens Thickness
0.13 in
Overall Height
5 in
Overall Width
17 in
Manufacturers Warranty Length
Lifetime Warranty; 10-Year Warranty on LED Boards
Wire Rope Length
17 in

Details

Light Technology
LED
Lighting Technology
LED
Lighting Certification
Unrated
Voltage
120/277V AC
Color Temperature
4000K
Lumens
4,289 lm
Color Rendering Index
82
Rated Life
130,000 hr
Dimmable
Yes
Housing Color
Bronze
Warranty
Lifetime Warranty; 10-Year Warranty on LED Boards
For Bulb Type
Integrated LED
Includes
TXSD -Torx Screwdriver Bit
IP Rating
Not Rated
Lumens per Watt
85.8 lm/W
Light Distribution Shape
Lambertain
Hazardous Location Rating
Not Rated
Ceiling Mount Type
Ceiling Mount; Wall Mount
Finish
Powder Coated
Mounting Hardware Included
No
Standards
U.L., C.UL. Wet Location Listing standard. Meets Buy America(n) requirements.
Beam Angle
180 Degrees
Bulb Included
Integrated LED
Fixture Ballast Type
No Ballast Required
Max. Ambient Temp.
50 Degrees C
Lens Material
Polycarbonate
Dimming Range
100% to 10%
Ballast Start Type
No Ballast
Lens Shape
Curved
Dimming Method
0-10V
Linkable
No
Emergency Battery Backup
No
Item
Vandal and Ligature Resistant Fixture
Sensor Type
No Sensor
Fixture Type
Vandal Resistant Wallpack
Lens Type
Opal Lens
Max. Fixture Wattage
50 W
For Max. Bulb Wattage
50 W
Reflector Type
Closed
Mounting Style
Ceiling, Wall
Series
ARV17
Housing Material
Polycarbonate
Min. Ambient Temp.
-40 Degrees C
Light Color
White
Linkable Up To
Unlinkable
NEMA Enclosure Rating
Not Rated
Light Output
4,289 lm
Ambient Temperature - Maximum
122 Degrees F
Lumen Selectable
Not Selectable
Maximum Fixture Wattage
50 W
Ballast Type
No Ballast Required
Ambient Temperature - Minimum
-40 Degrees C
Color Selectable
Not Selectable

Description

1 1/2 ft, Lens Shape Curved, 4000K, 4,289 lm, 85.8 lm/W, Max. Fixture Wattage 50 W, LED, Sensor Type No Sensor, Mounting Style Ceiling, Wall, Linkable No, For Bulb Type Integrated LED, LED Replacement For Not Applicable, Bulb Included Integrated LED, Dimmable Yes, ARV17
