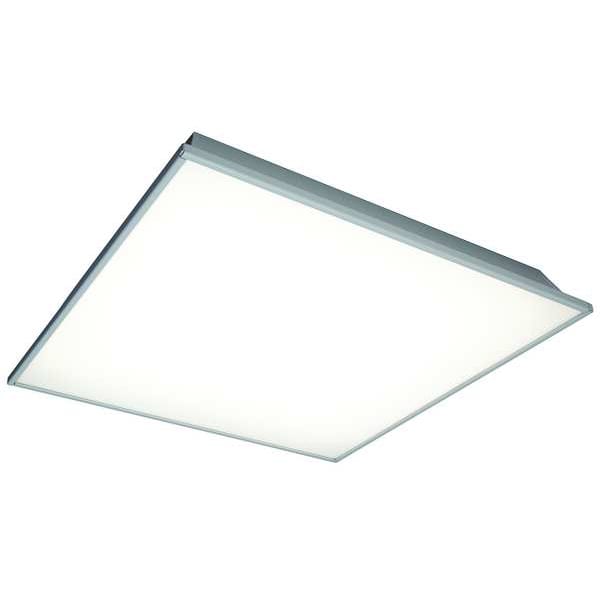

Recessed Troffer, 2 ft L, 3300 lm, 26W

  • Mfr # LBT22A033MM835VQLTWHTE

  • Zoro # G3104206


product price: $203.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Recessed Troffer
Nominal Size - Fixtures
2 ft x 2 ft
Lighting Technology
LED
Voltage
120 to 277V AC
Lighting Certification
DesignLights Consortium (DLC) 5.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LBT22A033MM835VQLTWHTE
Zoro #
G3104206
UPC #
-
Country of Origin
Multiple

Dimensions

Nominal Size - Fixtures
2 ft x 2 ft
Fixture Length
23 45/64 in
Fixture Width
23 45/64 in
Fixture Height
3 1/2 in
Overall Width
23 7/8 in
Overall Length
23 7/8 in
Overall Height
3 3/4 in
Nominal Size
2 ft x 2 ft

Details

Item
Recessed Troffer
Fixture Item
Recessed Troffer
Lighting Technology
LED
Voltage
120 to 277V AC
Lighting Certification
DesignLights Consortium (DLC) 5.0
Watts
34
Lamp Type - Fixtures
Integrated LED
Dimmable
Yes
Lumens
3,300 lm
Color Temperature
3500K
Color Rendering Index
80
Max. Fixture Wattage
26 W
Fixture Warranty
5 yr
Lumens Per Watt
127.0
Green Certification or Other Recognition
DesignLights Consortium (DLC)
Design
Thin Troffer
Fixture Voltage
120 to 277
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Fixture Temp. Range
0 Degrees to 104 Degrees F
Bulb Technology
LED
CRI
80
Color Temp.
3500K
Fixture Rated Life
50,000 hr
Standards
ANSI C82.77, cULus Listed, UL Listed
LED Replacement For
2 Lamp T8
Includes
Integrated LED, Opal Diffuser Lens
Housing Color
White
Housing Material
Electrogalvanized Cold Rolled Steel
Lens Type
Diffuser
Rated Life
50,000 hr
Lumens per Watt
127 lm/W
IP Rating
Integrated LED, Opal Diffuser Lens
For Max. Bulb Wattage
17 W
Min. Ambient Temp.
-4 Degrees F
Dimming Method
0 to 10V
Ballast Start Type
No Ballast
Sensor Type
No Sensor
Lens Shape
Flat
Light Technology
LED
Max. Ambient Temp.
95 Degrees F
Dimming Range
100% to 5%
Finish
Powder Coated
Bulb Included
Yes
For Bulb Type
Integrated LED
Emergency Battery Backup
No
Fixture Ballast Type
No Ballast Required
Series
LBT

Description

2 ft x 2 ft, Lens Shape Flat, 3500K, 3,300 lm, 127 lm/W, LED, LED Replacement For (2) Lamp T8, Bulb Included Yes, For Bulb Type Integrated LED, Lamp Quantity Not Applicable, Fixture Ballast Type No Ballast Required, Sensor Type No Sensor, Max. Fixture Wattage 26 W, Color Rendering Index 80, 120 to 277V AC, Lighting Certification DesignLights Consortium (DLC) 5.0, Dimmable Yes, Emergency Battery Backup No, Series LBT
